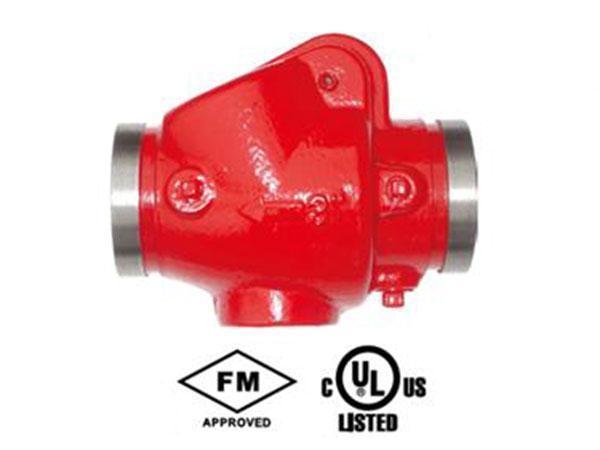

UL FM Grooved-end Swing Check Valve
Installed in both Horizontal or Vertical Line with Upward Flow
Easier and Faster to Maintain and Install
Low Pressure Drop
EPDM non-stick leak tight sealing
All Stainless Steel Wetted Parts to Provide Superior Corrosion Resistance
FM Approved & UL/ULC Listed
| Part Number | Size(mm) | OD | A | |
| Inch | mm | |||
| VCG01-063 | 2 | 50 | 60.3 | 169 |
| VCG01-073 | 2.5 | 65 | 73.0 | 183 |
| VCG01-076 | 3OD | 65 | 76.1 | 183 |
| VCG01-089 | 3 | 80 | 88.9 | 198 |
| VCG01-114 | 4 | 100 | 114.3 | 218 |
| VCG01-140 | 5.5OD | 125 | 139.7 | 248 |
| VCG01-141 | 5 | 125 | 141.3 | 248 |
| VCG01-165 | 6.5OD | 150 | 165.1 | 270 |
| VCG01-168 | 6 | 150 | 168.3 | 270 |
| VCG01-219 | 8 | 200 | 219.1 | 325 |
| VCG01-273 | 10 | 250 | 273.0 | / |
| VCG01-324 | 12 | 300 | 323.9 | / |
| Part | Specification |
| 1.Body | Ductile Iron ASTM A 536 |
| 2.Seat | Bronze |
| 3.Clapper | Stainless Steel 304 |
| 4.Facing Seal | EPDM Rubber |
| 5.Clamping Ring | Stainless Steel 304 |
| 6.Gasket | EPDM Rubber |
| 7.Spring | Stainless Steel 304 |
| 8.Hinge Pin | Stainless Steel 304 |
| 9.Bolt | Stainless Steel 304 |
| 10.Locknut | Stainless Steel 304 |
| 11.Plug 1/4" NPT | Carbon Steel |
| 12.Plug 1/2" NPT | Carbon Steel |
