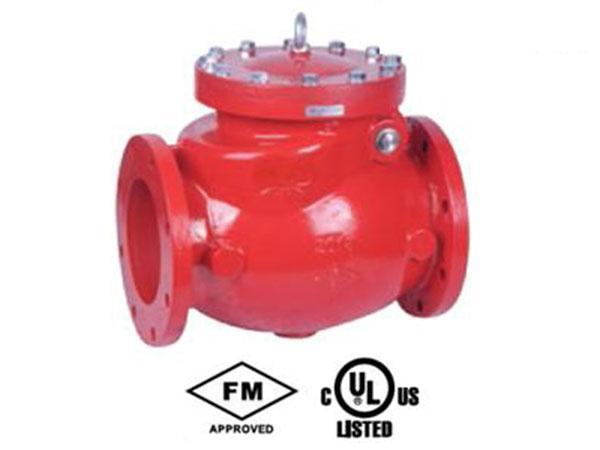

UL FM Flanged-end Swing Check Valve
Connection Ends: ASME B16.1 Class 125
Working Pressure: 200PSI, 250PSI, 300PSI are available upon request
Temperature Range: 0 - 80 Degree
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
FM Approved & UL/ULC Listed
| DN | Dimension(mm) | ||||||
| Inch | mm | L | D | D1 | b | n-￠d | H |
| 2 | 50 | 203 | 152 | 120.5 | 16 | 4-19.1 | 133 |
| 2.5 | 65 | 254 | 178 | 139.5 | 17.5 | 4-19.1 | 150 |
| 3 | 80 | 278 | 191 | 152.5 | 19 | 4-19.1 | 243 |
| 4 | 100 | 330 | 229 | 190.5 | 24 | 8-19.1 | 284 |
| 6 | 150 | 406 | 279 | 241.5 | 25.5 | 8-22.2 | 290 |
| 8 | 200 | 495 | 343 | 298.5 | 28.5 | 8-22.2 | 330 |
| 10 | 250 | 622 | 406 | 362 | 30.5 | 12-25.4 | 350 |
| 12 | 300 | 660 | 483 | 432 | 32 | 12-25.4 | 376 |

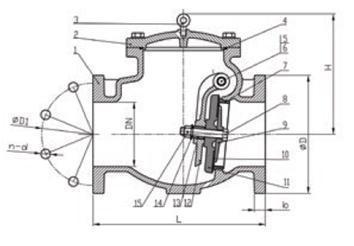

| Part | Specification |
| 1.Body | ASTM A536,65-45-12 |
| 2.Bonnet | ASTM A536,65-45-12 |
| 3.Eye Bolt | Carbon Steel Zinc Plated |
| 4.O-Ring | NBR / EPDM |
| 5.Hinge Pin | AISI 304 |
| 6.Hinge Bushing | Brass ASTM B16 C36000/Hpb63-3 |
| 7.Seat Ring | Bronze or SS 304 |
| 8.Disc Seat Bolt | AISI 304 |
| 9.Retainer Washer | Bronze ASTM B62 C83600/ZQSn5-5-5 |
| 10.Disc Sealing Ring | EPDM / SS304 |
| 11.Disc | ASTM A536,65 |
| 12.Clapper Arm | ASTM A536,65 |
| 13.Stud Bushing | Brass ASTM B16 C36000/Hpb63-3 |
| 14.O-Ring | NBR / EPDM |
| 15.Nut | SS 304 / SS316 |
