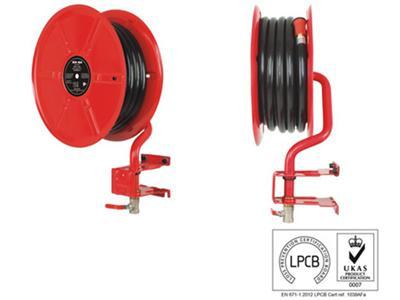

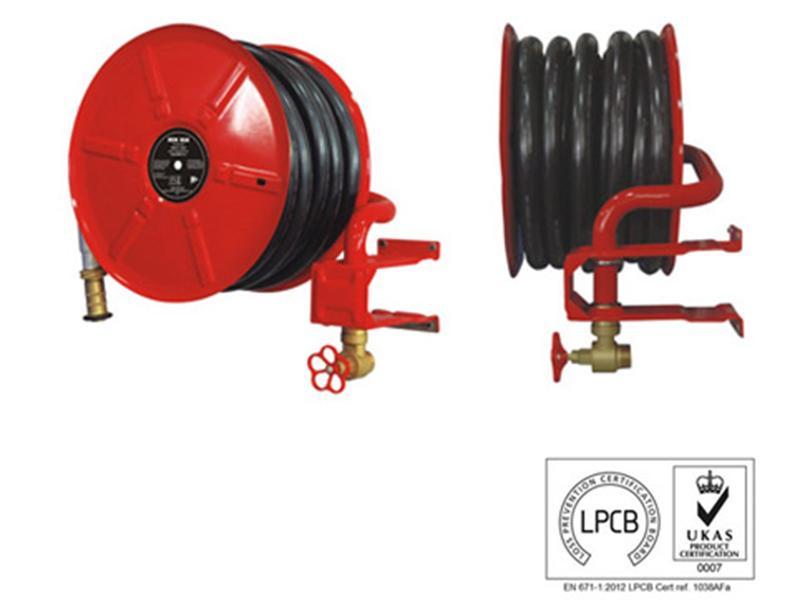

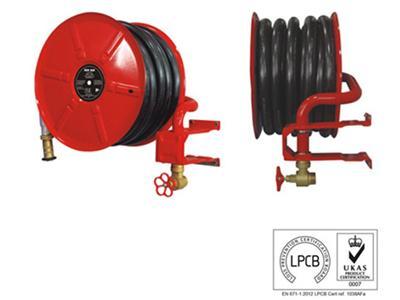

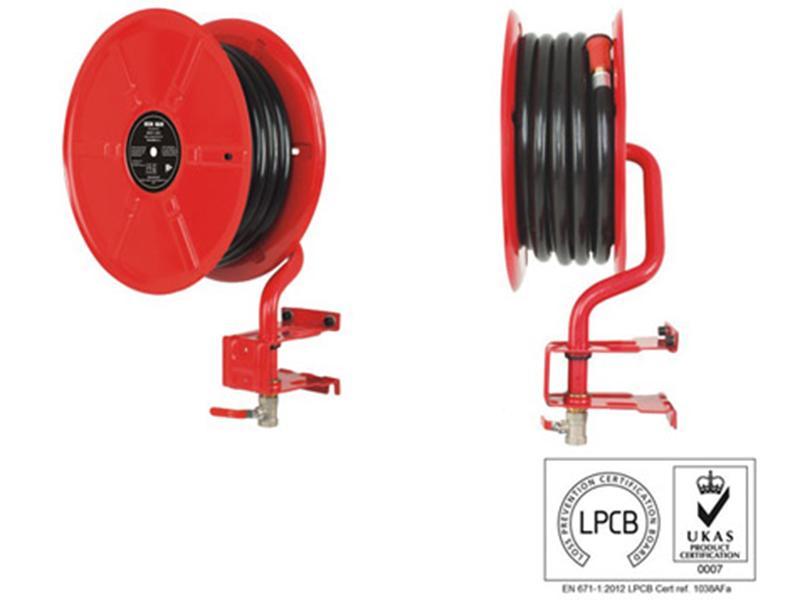

Installed on the wall and fixed in one position permanently, or embedded installed in the hose reel cabinet.

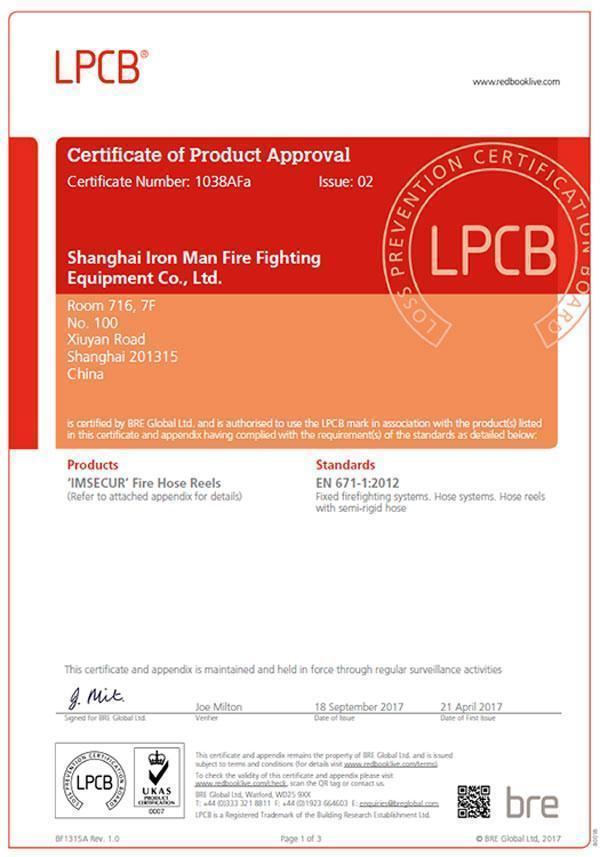

LPCB certification number: Ref.1038AFa

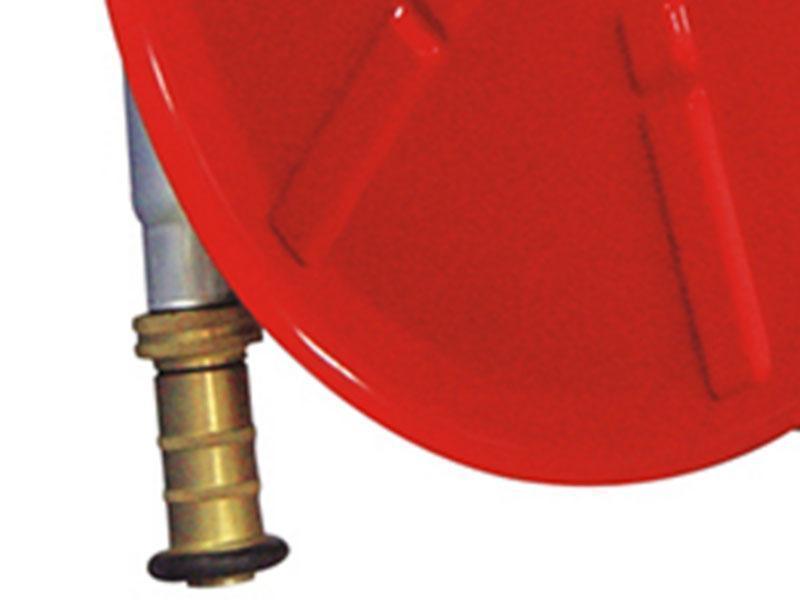

During the DC operation of standard fire hose nozzle whose production and manufacture conform with BS EN671-1, the effective spray distance is 10m at pressure 2 bar.

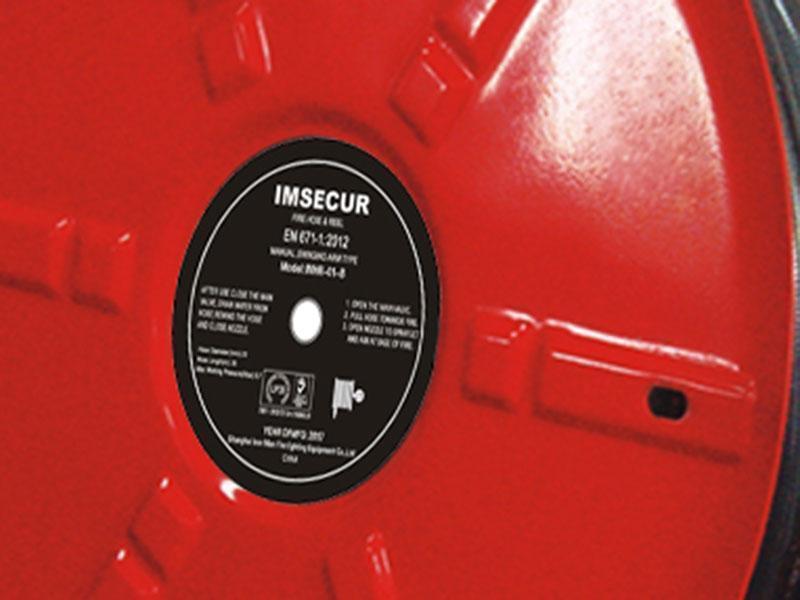

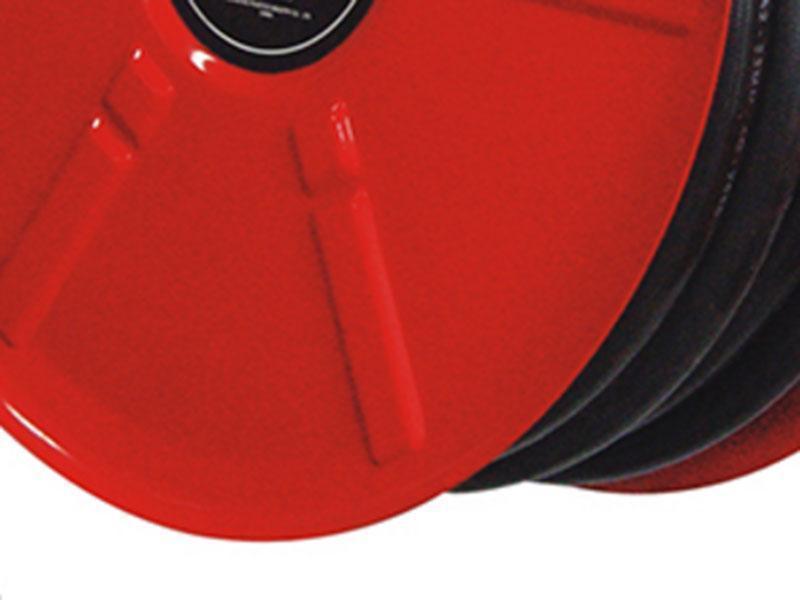

The minimum flow is 41L/MIN at pressure 6 bar during the JET and SPRAY operation. The hose reel is made of 1.2mm steel plate and is equipped with stiffener, which avoid the distorting of the plate. And the hose reel drum is coated with red powder.
|Model||Type||Hose Diameter & Length||Height (A in mm)||Width (B in mm)||Depth (C in mm)|
|IMHR-01-B||Manual,swinging arm, wall mounted||33mm*30m||740||670||420|
|IMHR-01-A||Manual,swinging arm, wall mounted||25mm*30m||816||600||200|

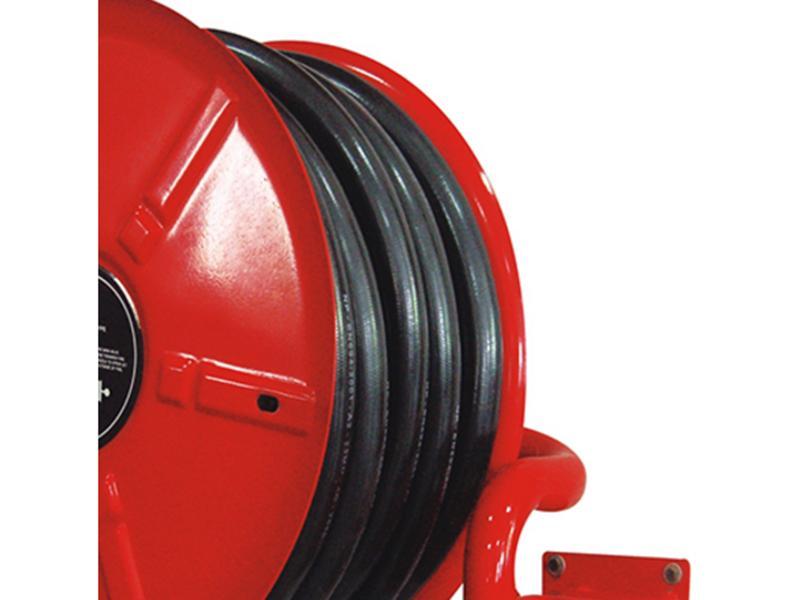

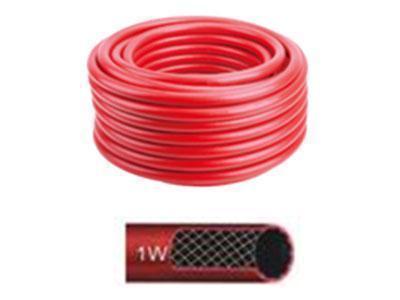

The manufacture of semi-rigid hose reel conform with BS EN 694:2014 standard.
The out layer is coated with UV inhibitor to prevent colour fading.
