Installed on the wall and fixed in one position permanently, or embedded installed in the hose reel cabinet.

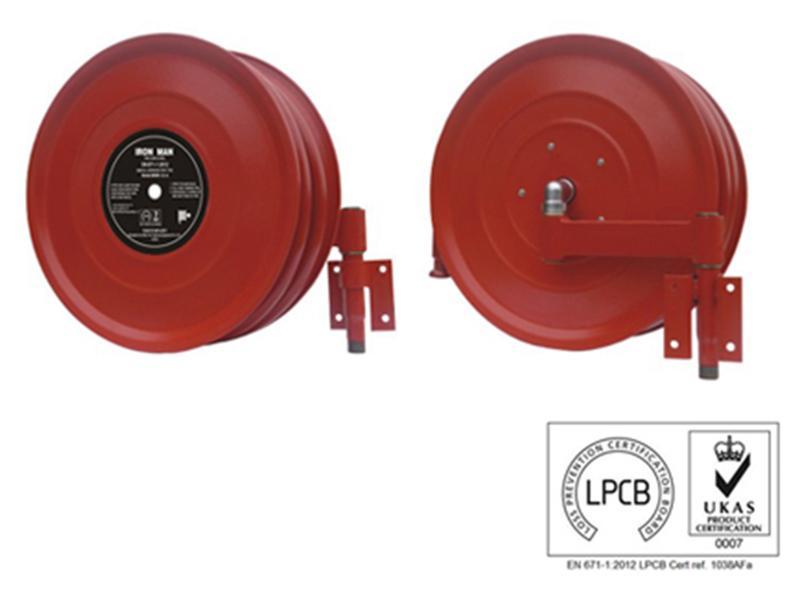

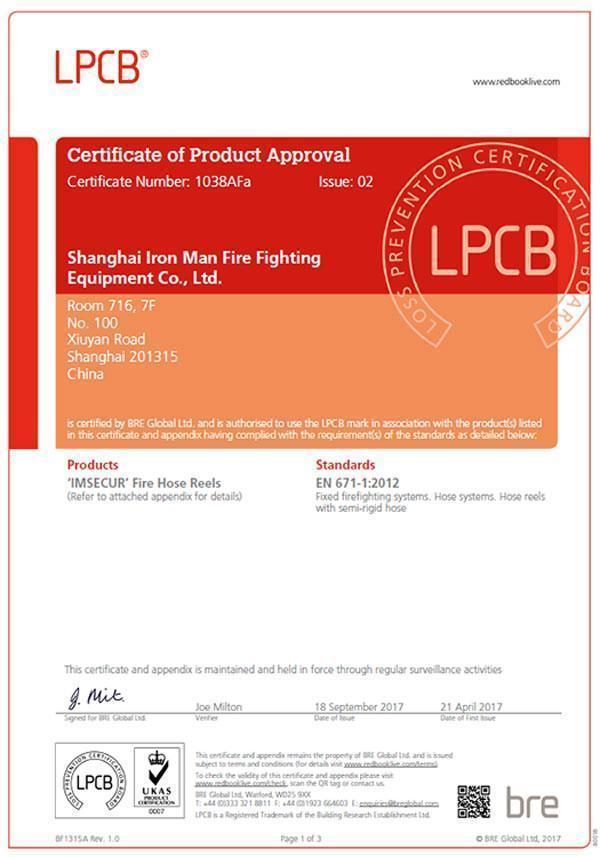

LPCB certification number: Ref.1038AFa
During the DC operation of standard fire hose nozzle whose production and manufacture conform with BS EN671-1, the effective spray distance is 10m at pressure 2 bar.

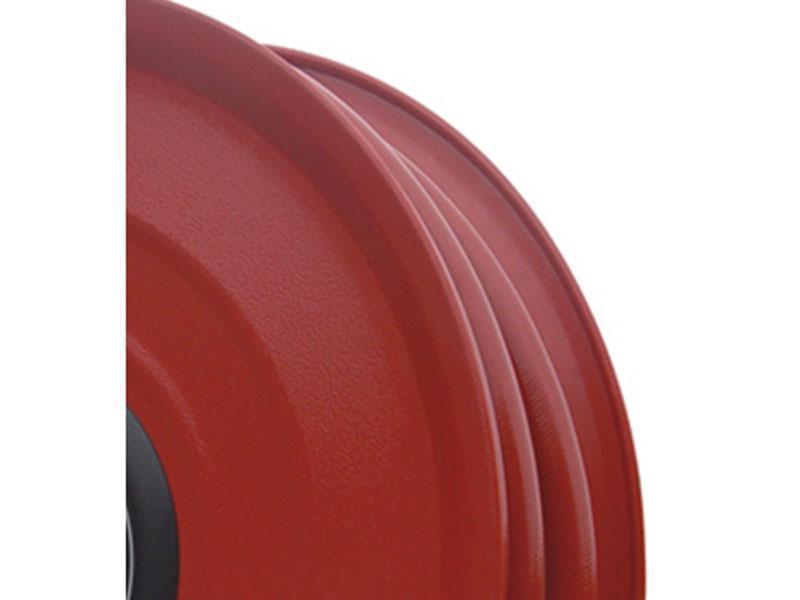

The minimum flow is 41L/MIN at pressure 6 bar during the JET and SPRAY operation. The hose reel is made of 1.2mm steel plate and is equipped with stiffener , which avoid the distorting of the plate. And the hose reel drum is coated with red powder.
|Model||Type||Hose Diameter & Length||Height (A in mm)||Width (B in mm)||Depth (C in mm)|

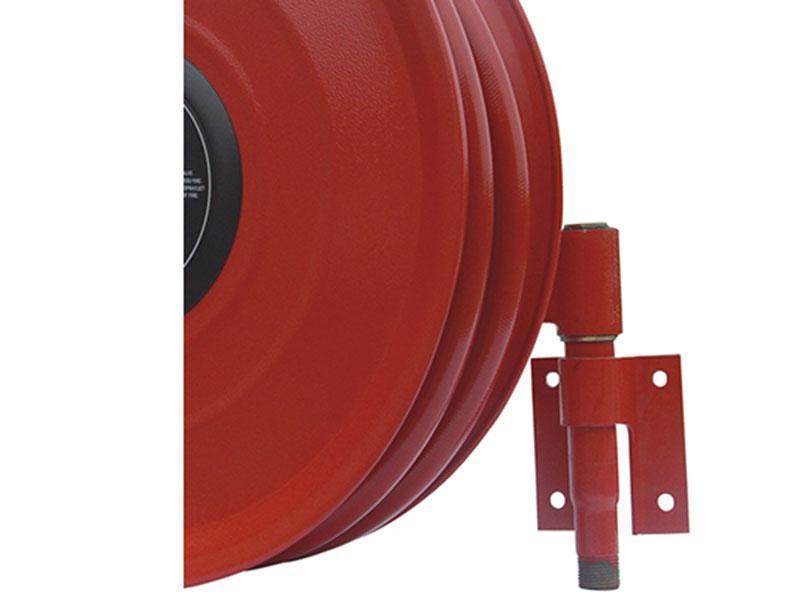

|IMHR-10-B||Automatic,swinging arm,cabinet or wall mounted||19mm*30m||555||570-580||260||
|IMHR-06-B||Automatic,swinging arm,cabinet or wall mounted||25mm*30m||600||610-680||230||

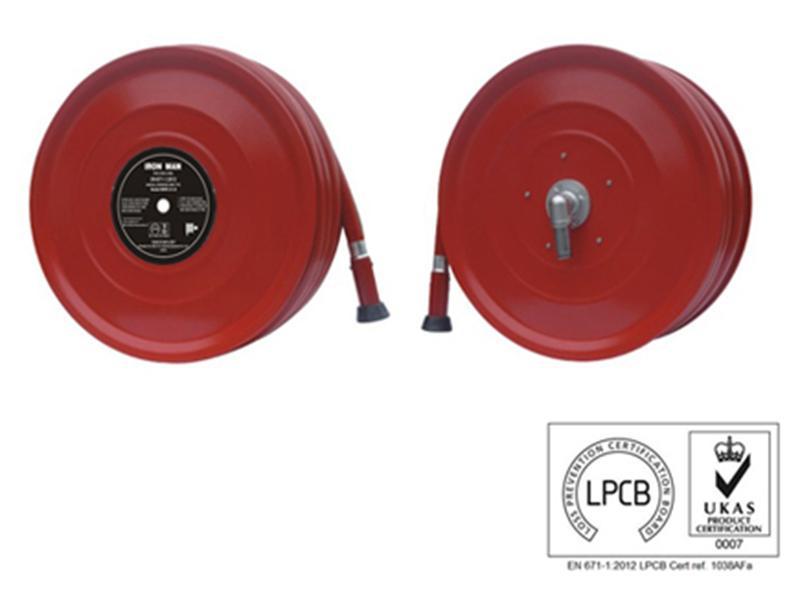

|IMHR-13-A||Automatic,swinging pipe,cabinet or wall mounted||19mm*30m||580||620||260||
|IMHR-15-A||Automatic,swinging pipe,cabinet or wall mounted||25mm*30m||600||640||260||

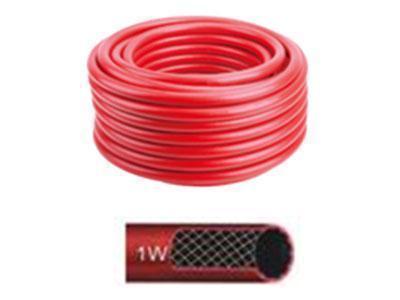

The manufacture of semi-rigid hose reel conform with BS EN 694:2014 standard.
The out layer is coated with UV inhibitor to prevent colour fading.

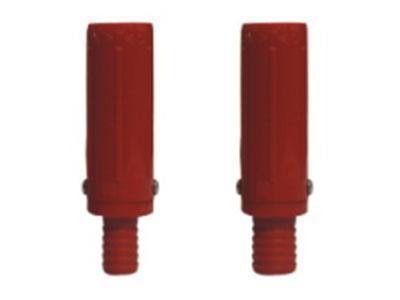

The plastic nozzle can realize SHUT, JET, and SPRAY, three kinds of operation.
|Model No||Setting||Diameter||Inlet Size||Flow rate at 2bar/6bar (L/Min/Jet/Spray)||Throw Range at 2 bar|

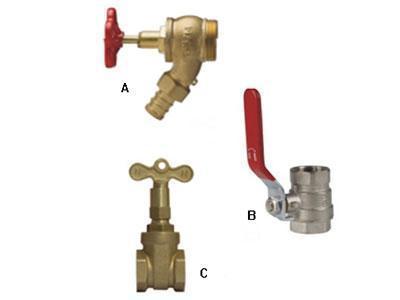

|Model No.||Size||Material||Working Pressure|
|A||1 1/2"-1" Angle valve||Brass||>18Bar|
|B||3/4"-3/4" Ball valve||Brass||>18Bar|
|C||1"-1" Lock shield valve||Brass||>18Bar|
