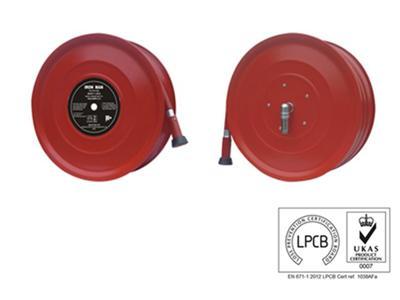

Manual Fire Hose Reel
Application
Installed on the wall and fixed in one position permanently, or embedded installed in the hose reel cabinet.
Technical parameter

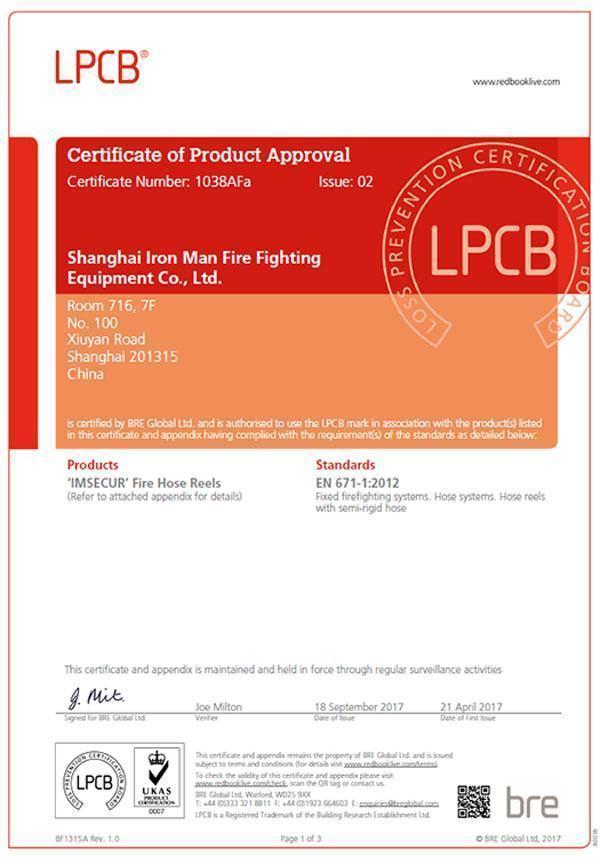

LPCB certification number: Ref.1038AFa
During the DC operation of standard fire hose nozzle whose production and manufacture conform with BS EN671-1, the effective spray distance is 10m at pressure 2 bar.
The minimum flow is 41L/MIN at pressure 6 bar during the JET and SPRAY operation. The hose reel is made of 1.2mm steel plate and is equipped with stiffener, which avoid the distorting of the plate. And the hose reel drum is coated with red powder.

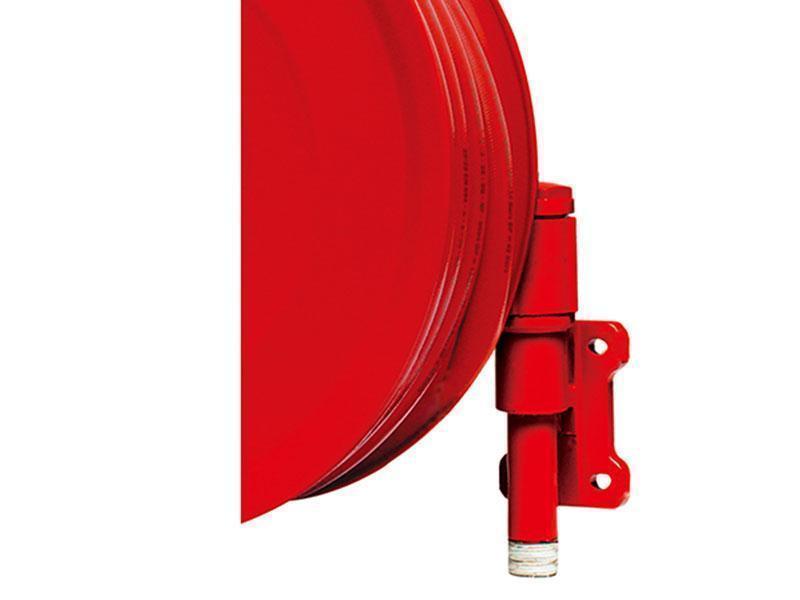

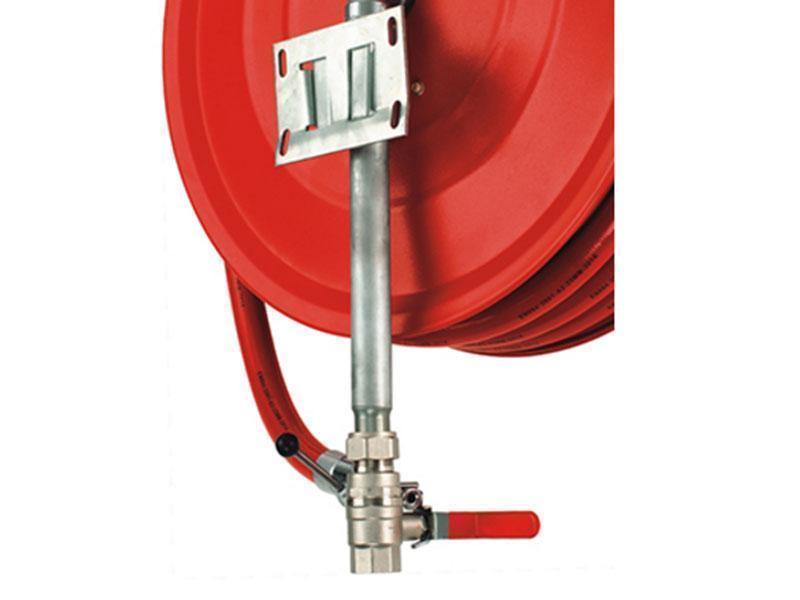

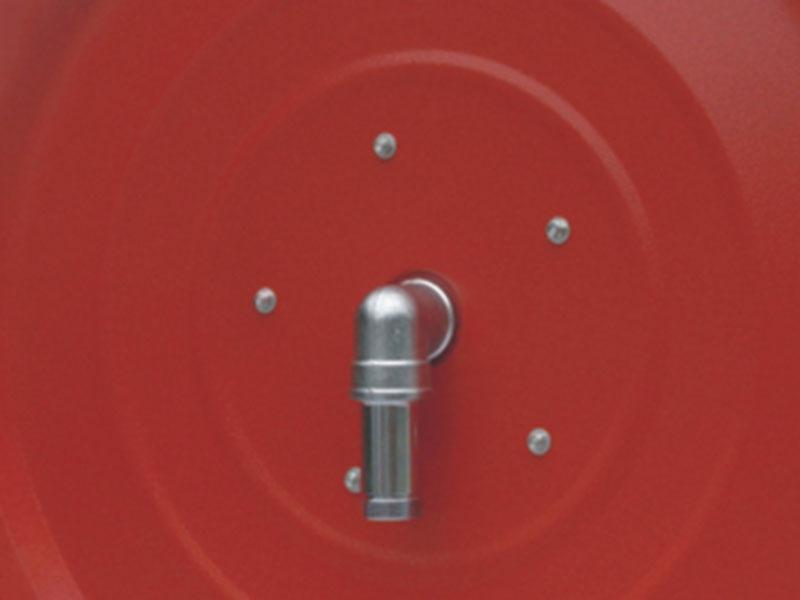

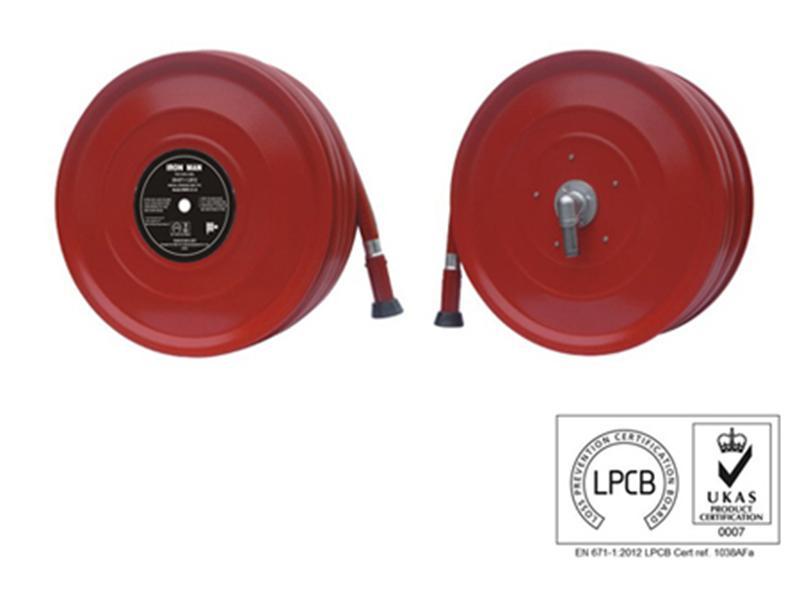

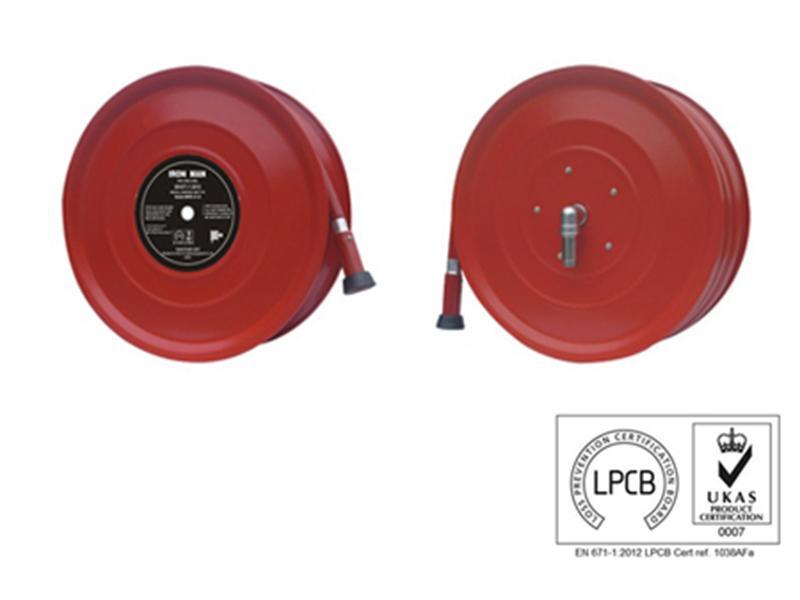

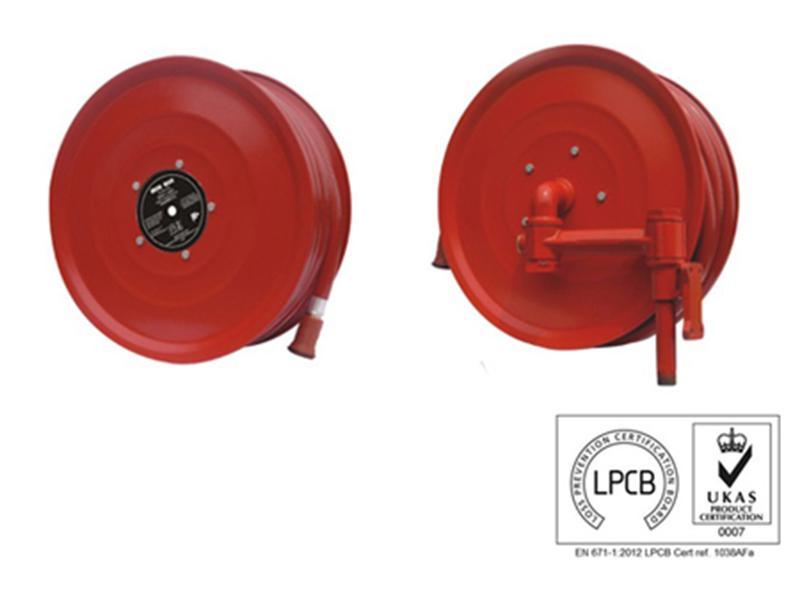

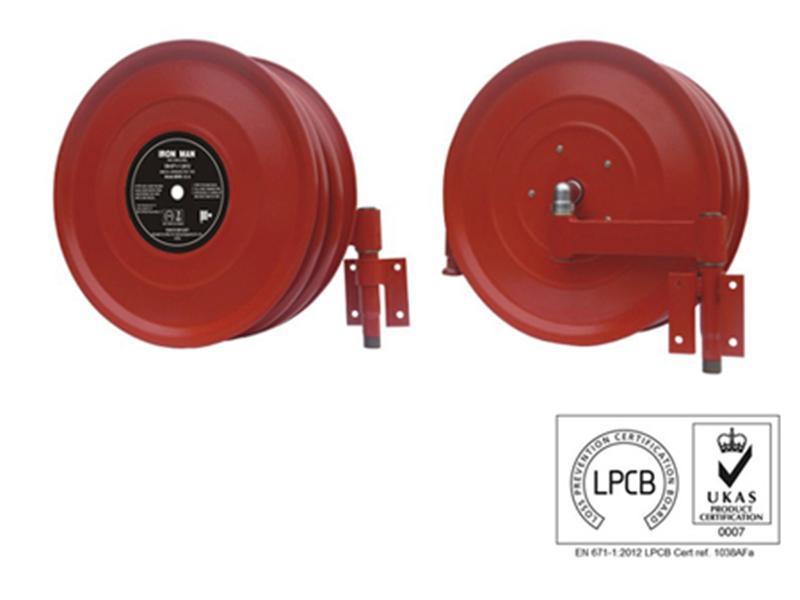

| Model | Type | Hose Diameter & Length | Height (A in mm) | Width (B in mm) | Depth (C in mm) | |
| IMHR-08-A | Manual,swinging arm, cabinet or wall mounted | 19mm*30m | 555 | 600-610 | 210 | |
| IMHR-07-B | Manual,swinging arm, cabinet or wall mounted | 25mm*30m | 600 | 570-580 | 210 | |
| IMHR-02-A | Manual,fixed,wall mounted | 19mm*30m | 720 | 555 | 230 | |
| IMHR-02-B | Manual,fixed,wall mounted | 25mm*30m | 720 | 555 | 260 | |
| IMHR-12-A | Manual,swinging pipe,cabinet or wall mounted | 19mm*30m | 580 | 620 | 230 | |
| IMHR-14-A | Manual,swinging pipe,cabinet or wall mounted | 25mm*30m | 600 | 640 | 250 | |
| IMHR-04-A | Manual,swinging pipe,cabinet or wall mounted | 19mm*30m | 570 | 580 | 270 | |
| IMHR-04-B | Manual,swinging pipe,cabinet or wall mounted | 25mm*30m | 570 | 580 | 300 | |

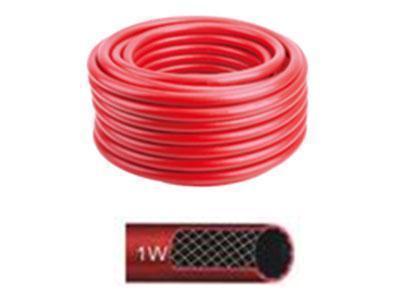

The manufacture of semi-rigid hose reel conform with BS EN 694:2014 standard.
The out layer is coated with UV inhibitor to prevent colour fading.
| Hose | ID | OD | Max.WP | Min.BP | Adhesion |
| 19mm | 19mm | 25mm | 12Bar | 42Bar | >1.5Kn/m |
| 25mm | 25mm | 32mm | 12Bar | 42Bar | >1.5kN/m |

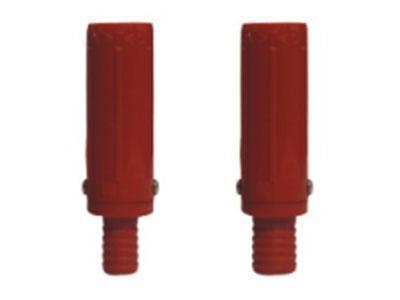

The plastic nozzle can realize SHUT, JET, and SPRAY, three kinds of operation.
| Model No | Setting | Diameter | Inlet Size | Flow rate at 2bar/6bar (L/Min/Jet/Spray) | Throw Range at 2 bar |
| N-03-1 | Jet/Spray | 6mm | 3/4" (19mm) | >24/41 | >11.2 |
| N-03-2 | Jet/Spray | 8mm | 1"(25mm) | >39/68 | >11.2 |

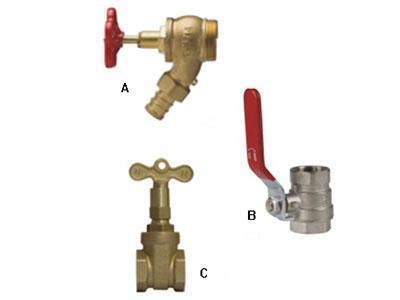

| Model No. | Size | Material | Working Pressure |
| A | 1 1/2"-1" Angle valve | Brass | >18Bar |
| B | 3/4"-3/4" Ball valve | Brass | >18Bar |
| C | 1"-1" Lock shield valve | Brass | >18Bar |
