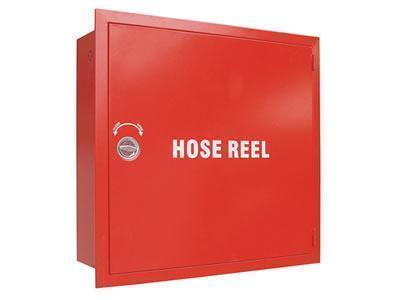

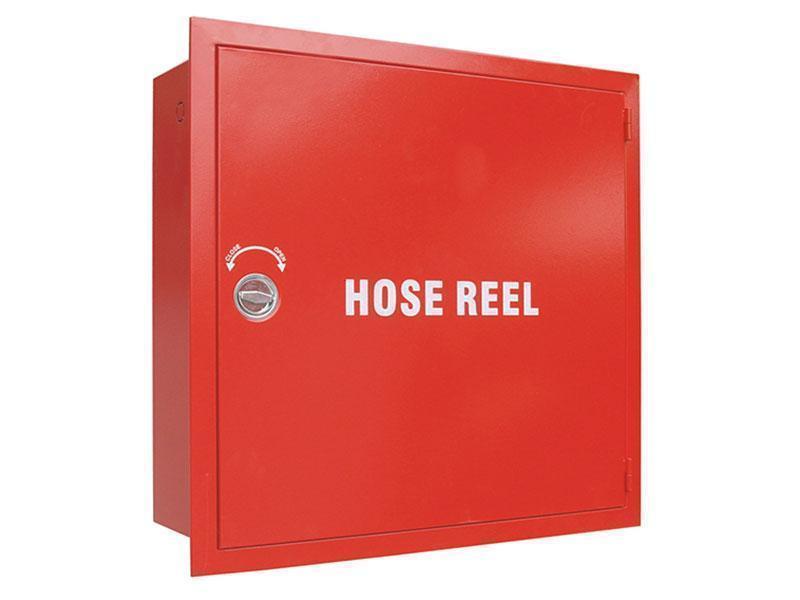

Single Cabinet for Fire Hose and Fire Extinguisher
Application

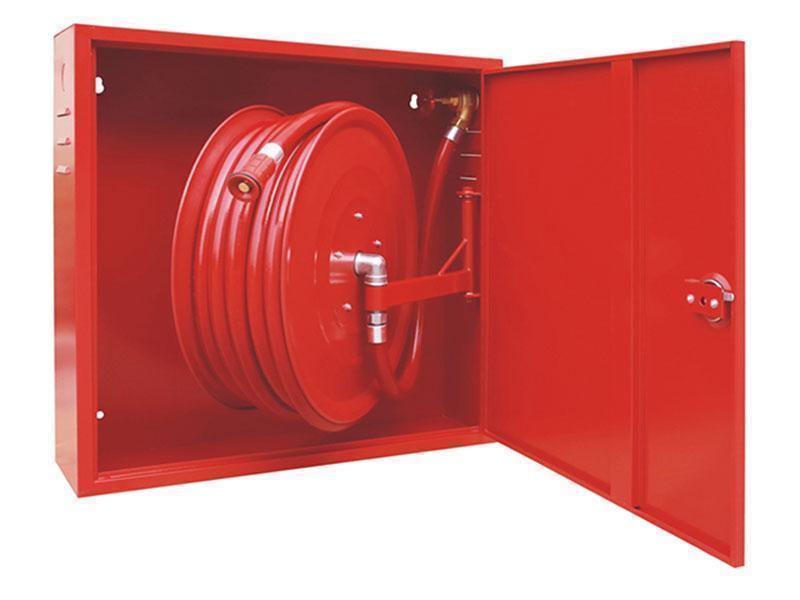

Applicable for Iron Man cabinet type fire hose reel

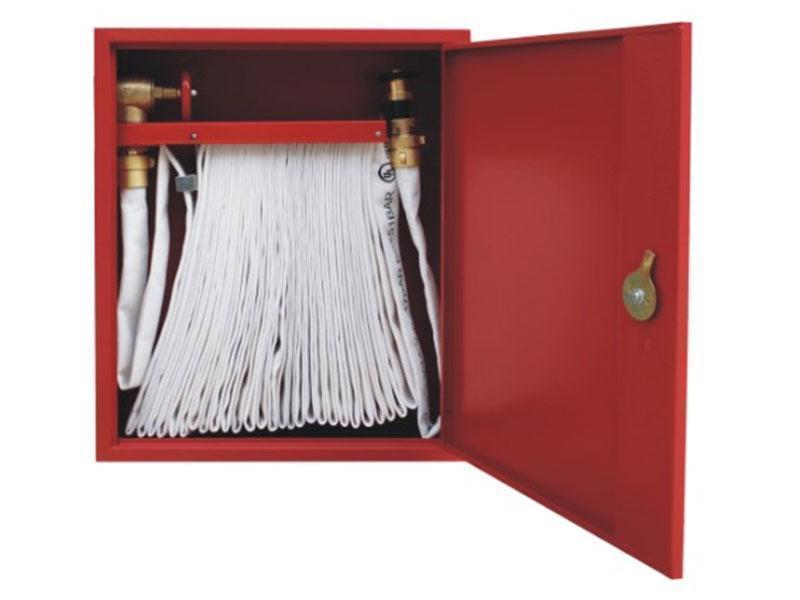

Applicable for Iron Man fire hoses and fire hose rack assembly
Applicable for Mosafe fire extinguisher
Technical parameter
Backbox and door are made of 1.2mm mild steel and stainless steel

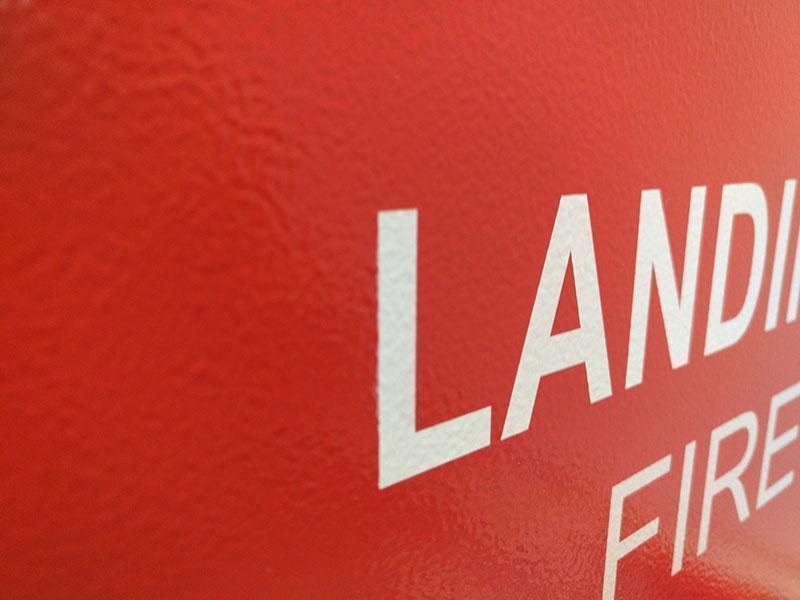

Red epoxy powder coating is coated on the surface

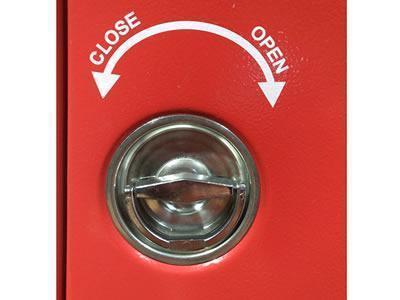

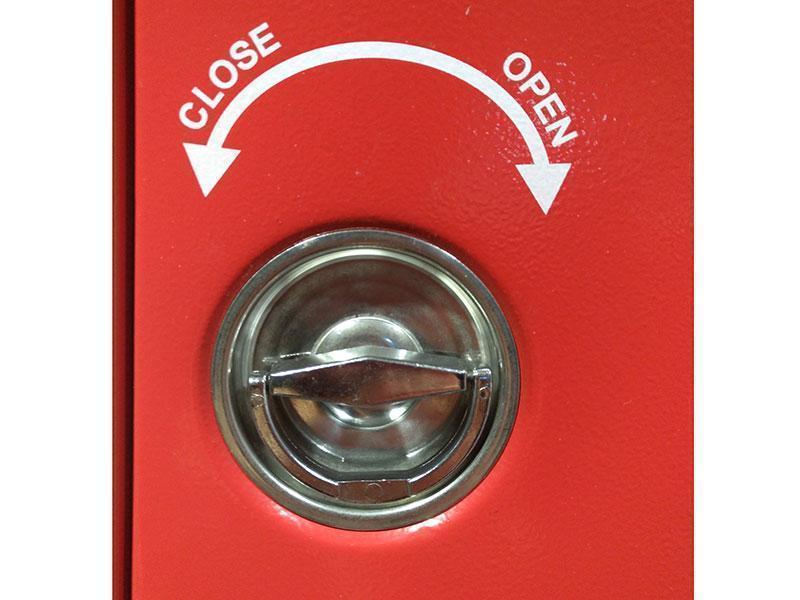

Stainless steel key and round lock with round hinges
Wall mounted or recessed
Front plexiglas, printing words upon to the requirements
| No. | Type | Dimension (width*height*depth) | Material | Assembly |
| 1 | Surface | 710*700*300mm | Mild steel or Stainless steel or with Pexiglass | Fire hose reel full set |
| 2 | Recess | 700*780*300mm Including(40mm border) | Mild steel or Stainless steel or with Pexiglass | Fire hose reel full set |
| 3 | Surface or recess | 900*1100*300mm | Mild steel or Stainless steel or with Pexiglass | Fire hose full set |
| 4 | Surface or recess | 730*750*280mm | Mild steel or Stainless steel or with Pexiglass | Fire hose full set |

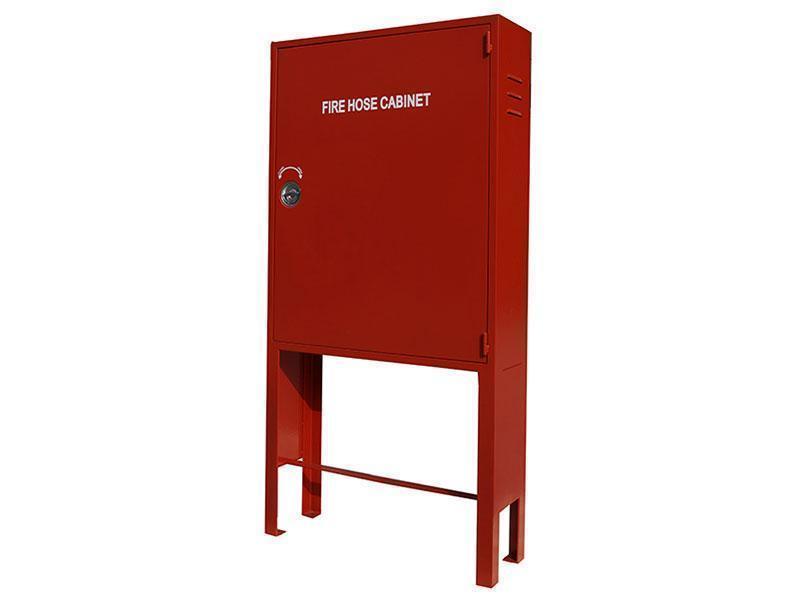

| 5 | Surface or recess | 1000*800*250mm With 600mm foot | Mild steel or Stainless steel or with Pexiglass | Fire hose with nozzle |
Note
The size of IRON MAN single cabinet for fire hose and fire extinguisher can be reduced or modified according to the requirements to adapt to different devices. Besides, it can provide specific assurance for maintaining the integrity of the wall penetration and meeting the construction specifications.
