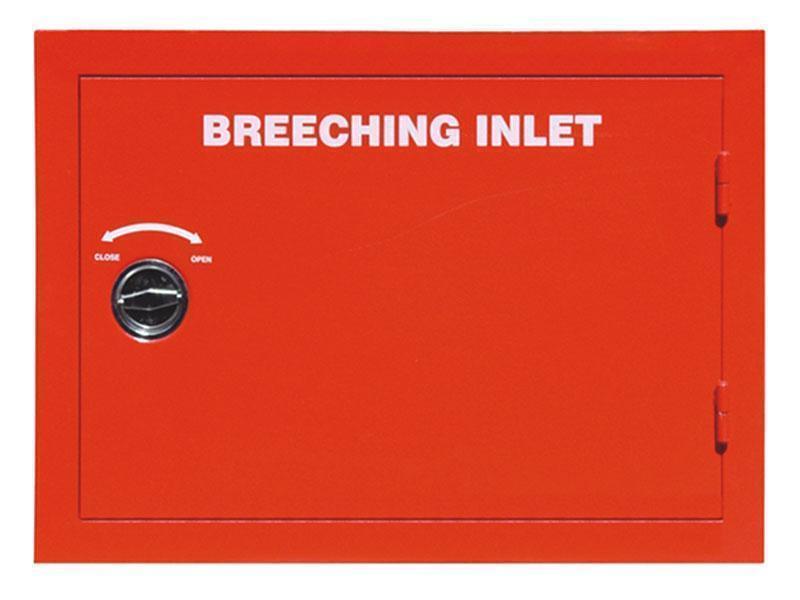

Breeching Inlet Cabinet

Breeching Inlet Cabinet

Suit for house in the dry riser inlets and protect the equipment away from dust,water,and misoperation.

Specification

Backbox,door of1.2mm mild steel sheet,or SS

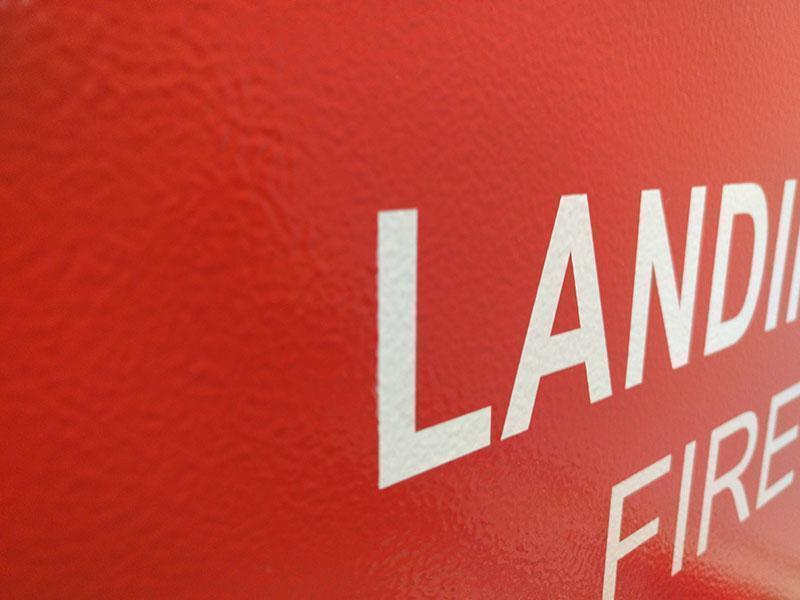

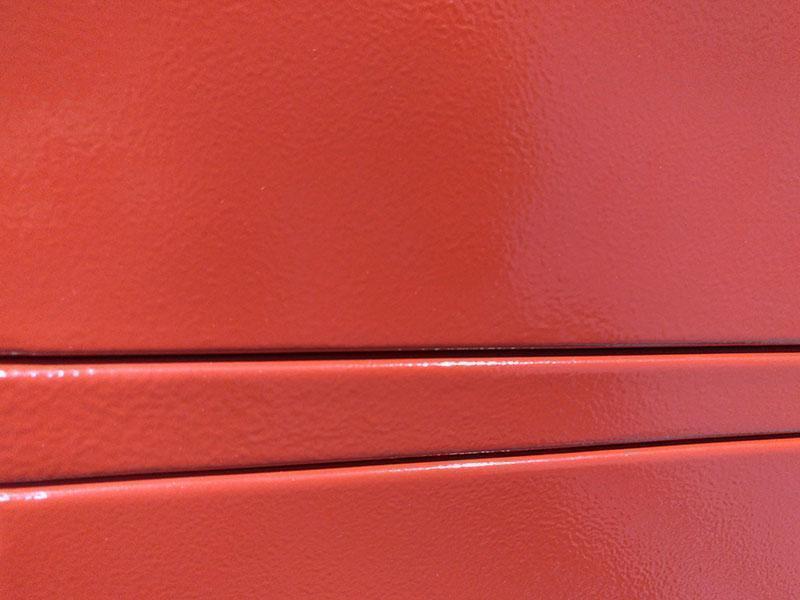

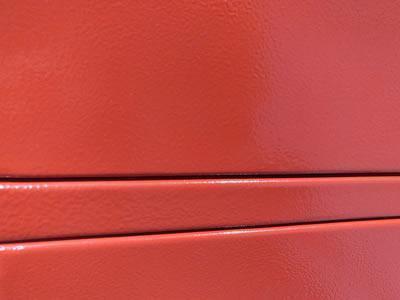

Red epoxy powder coated finish

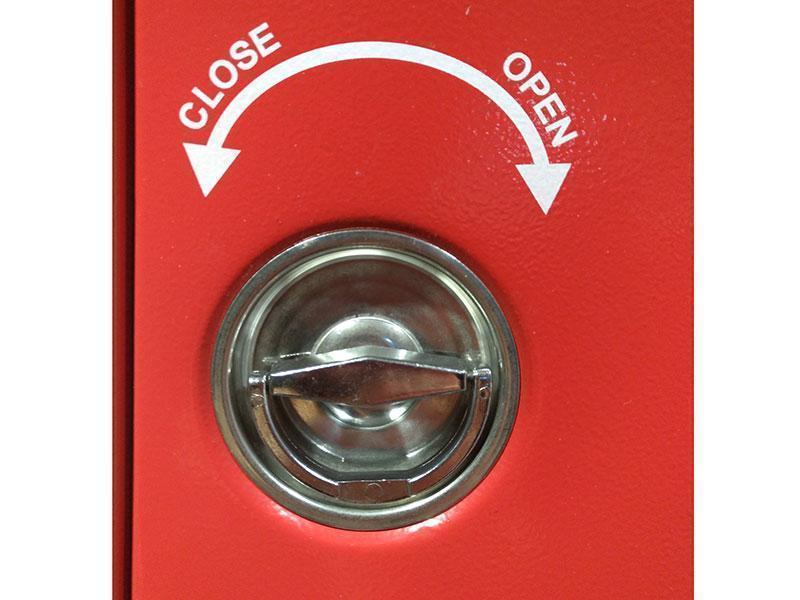

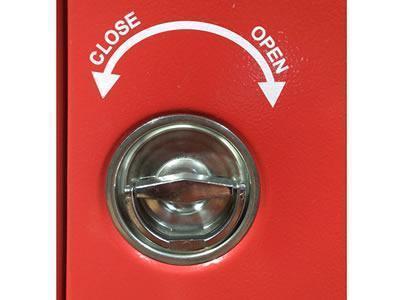

Stainless steel key round lock with round bar hinges
Wall mounted or recessed
Front Pexiglass, Printing words upon to the request

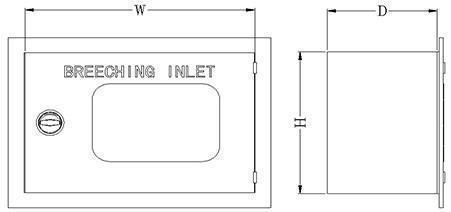

Dimensions
No. Type Dimension (width*height*depth) Material Assembly
1 Surface or recess 600*400*300mm Mild steel or Stainless steel or with Pexiglass 2 way horizontal flange type breeching inlet
2 Surface or recess 600*600*300mm Mild steel or Stainless steel or with Pexiglass 4 way horizontal flange type breeching inlet
3 Surface or recess 470*670*300mm Mild steel or Stainless steel or with Pexiglass Landing valve Flanged

Product Readme
IRON MAN Dry riser inlets cabinet size can be reduced and amended to accommodate the different equipments as per requirement. It also provides the specified assurance in maintaining the integrity of the wall penetration and in meeting building code specifications
