Split Case Centrifugal Fire Pump

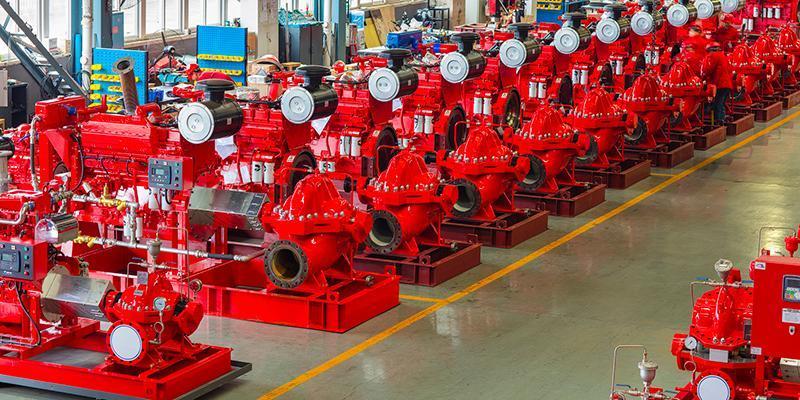

Centrifugal Fire Pumps, Horizontal Split Type
Rated Flow (US.GPM): 750GPM – 4000GPM

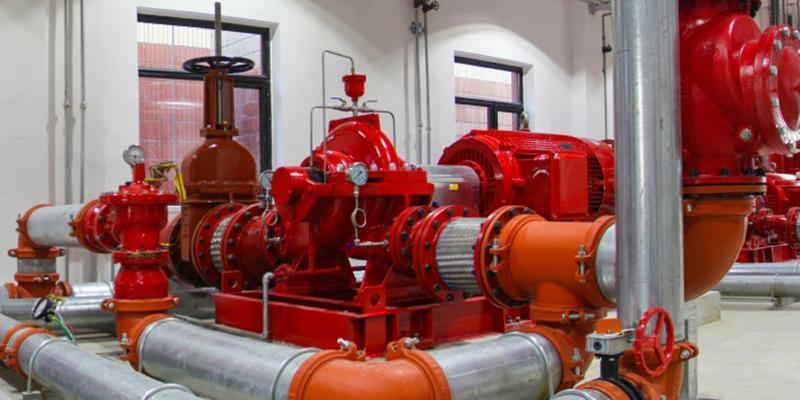

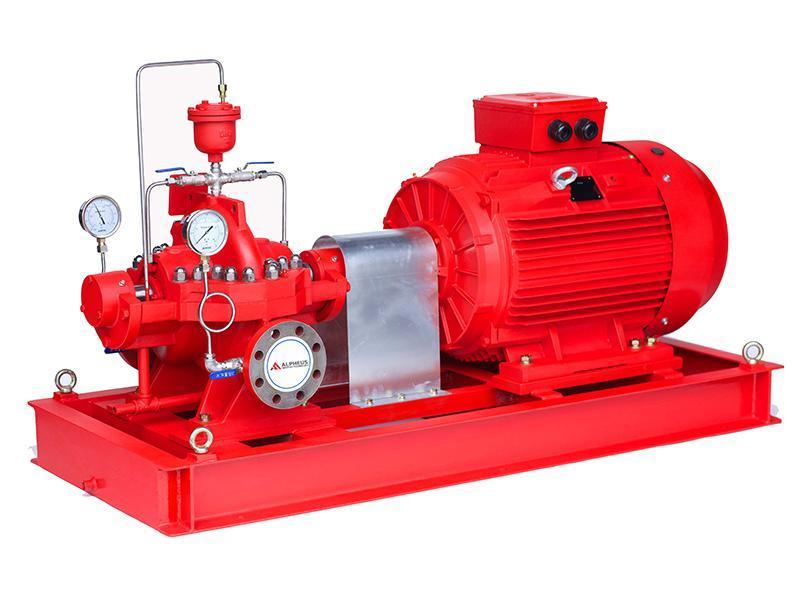

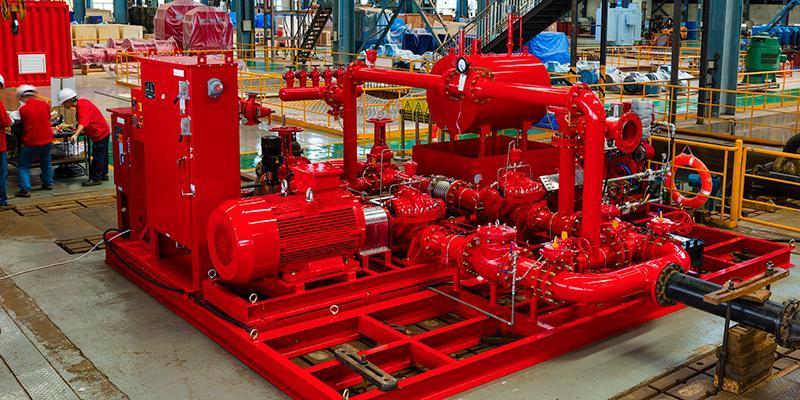

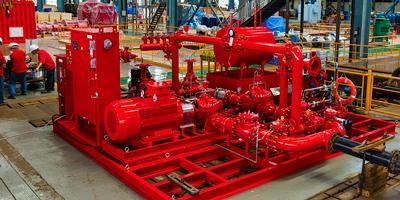

Electric motor driven fire pump group

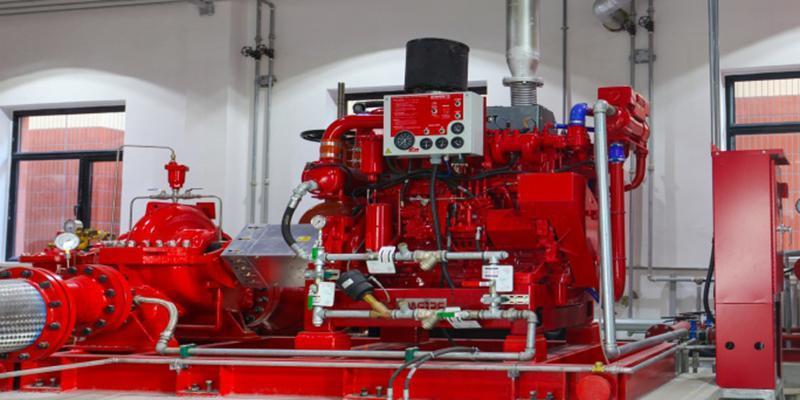

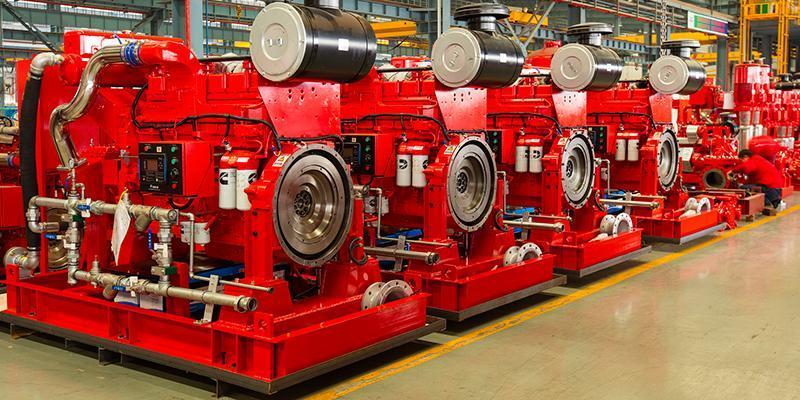

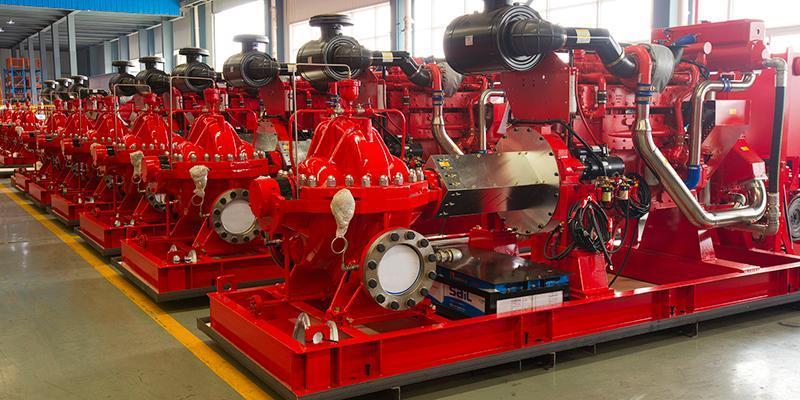

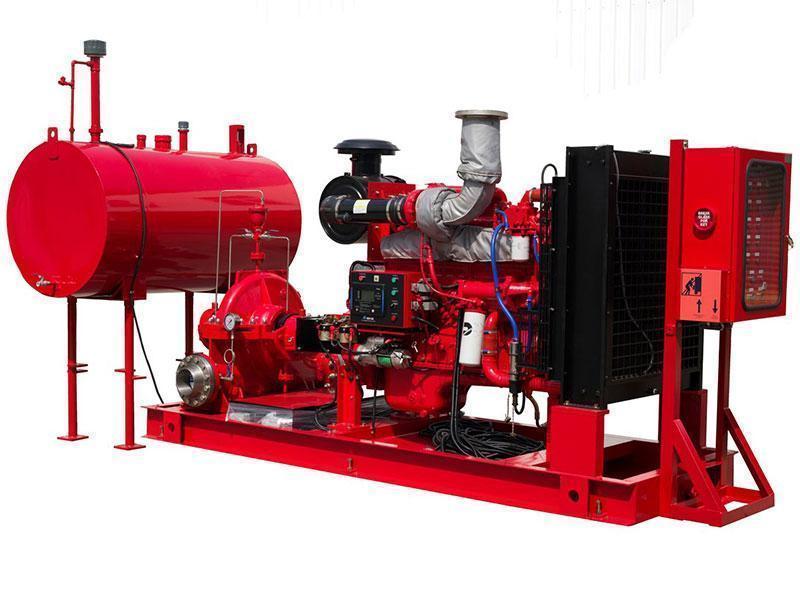

Diesel engine driven fire pump group with air cooling & water cooling
Application
Office buildings, Hospitals, Airports, Manufacturing facilities, Warehouses, Power stations, Oil and gas industry, Schools, Hotels
Materials of Construction
To meet the rugged demands of fire protection in industrial and offshore environments,split case pumps are available in:
1. Ductile Cast Iron Casing With SS304 Impeller
2. 304 or 316 Stainless steel wet parts
3. Duplex 2205 Stainless steel wet parts

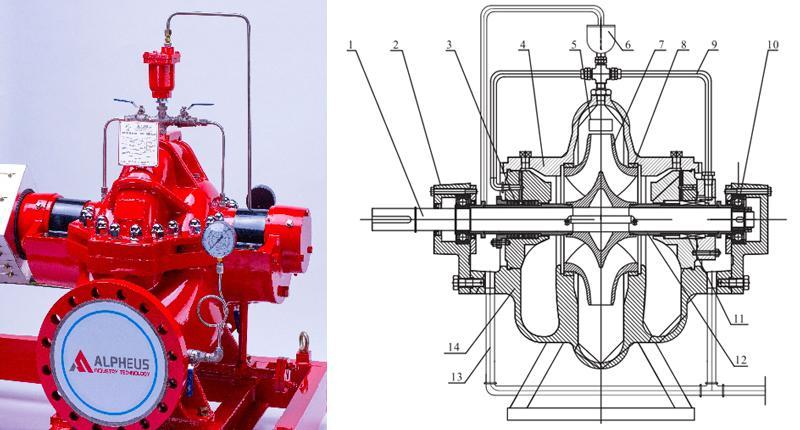

| No | Part Name | Material |
| 1 | Shaft | 20CR13,AISI4340,S3225 |
| 2 | Bearing Housing(DE) | HT200 |
| 3 | Packing Seal Assembly | |
| 4 | Upper Casing | QT500-7,S32205 |
| 5 | Nameplate | SS304 |
| 6 | Air release valve | |
| 7 | Impeller | SS304,S32205 |
| 8 | Casing seal ring | C83600 |
| 9 | Flushing pipe | SS304,S32205 |
| 10 | Bearing | SKF |
| 11 | Mechanical Seal assembly | |
| 12 | Shaft sleeve | SS304,SS316L |
| 13 | Drainage pipe | Q235B,S32205 |
| 14 | Pump Casing | QT500-7,S32205 |
