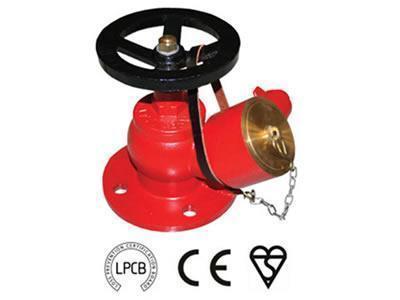

Application
Landing valve used for fire fighting can be installed in fire hydrant system indoor or outdoor. Landing valve sometimes is also called as indoor fire hydrant, so it is usually installed in the buildings for wet-type fire hydrant system.
Details

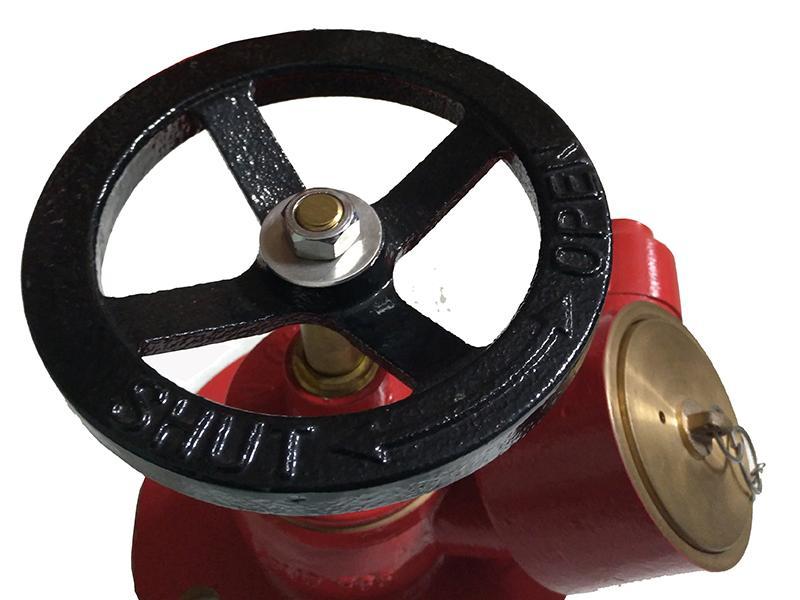

Handwheel

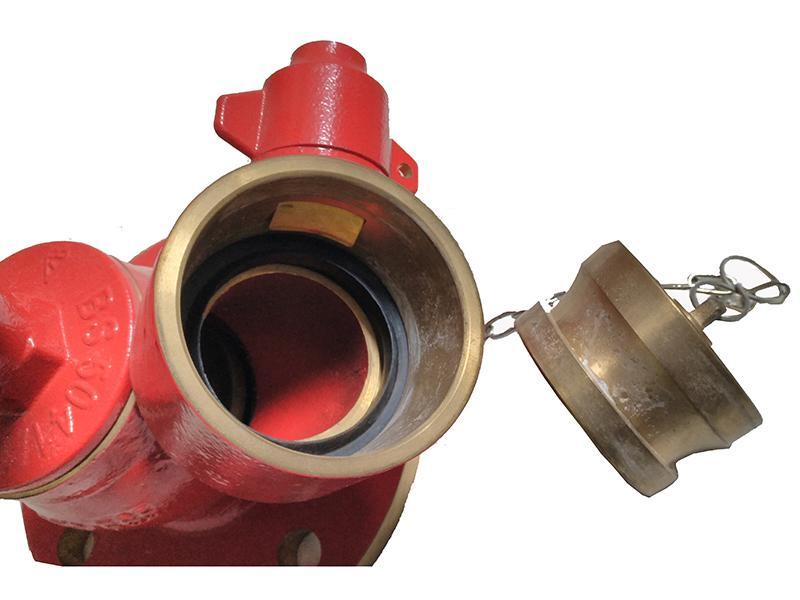

Coupling

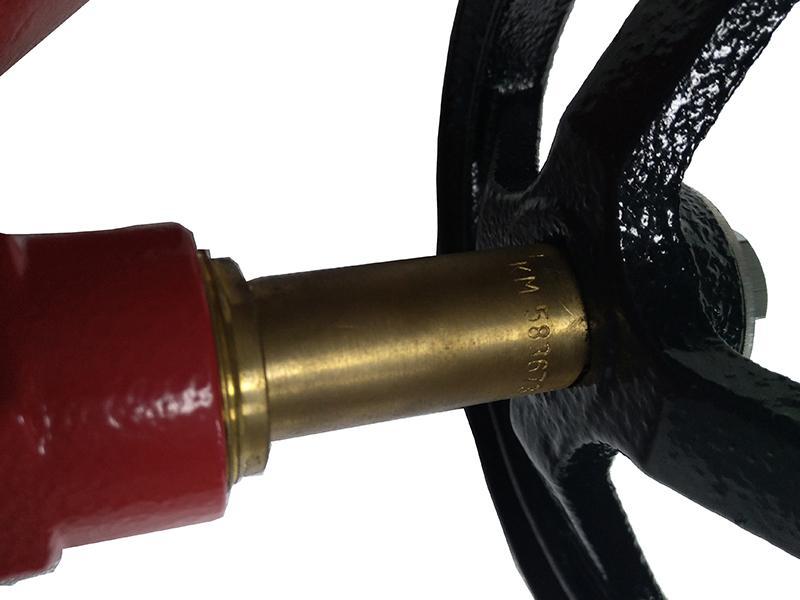

Valve rod

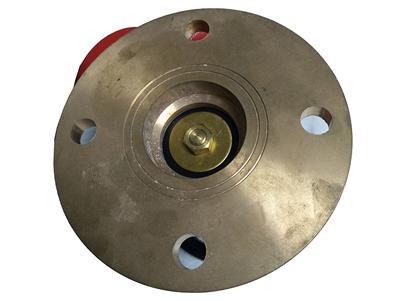

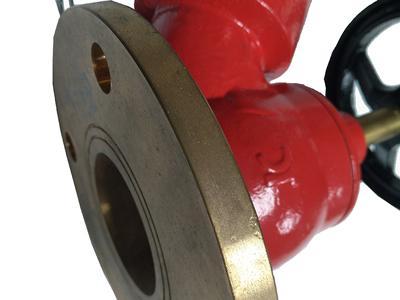

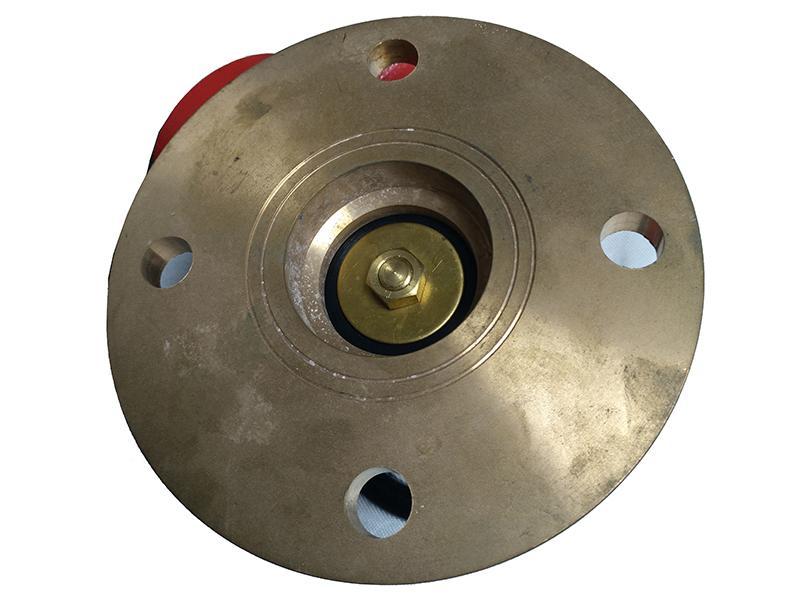

Bottom flange

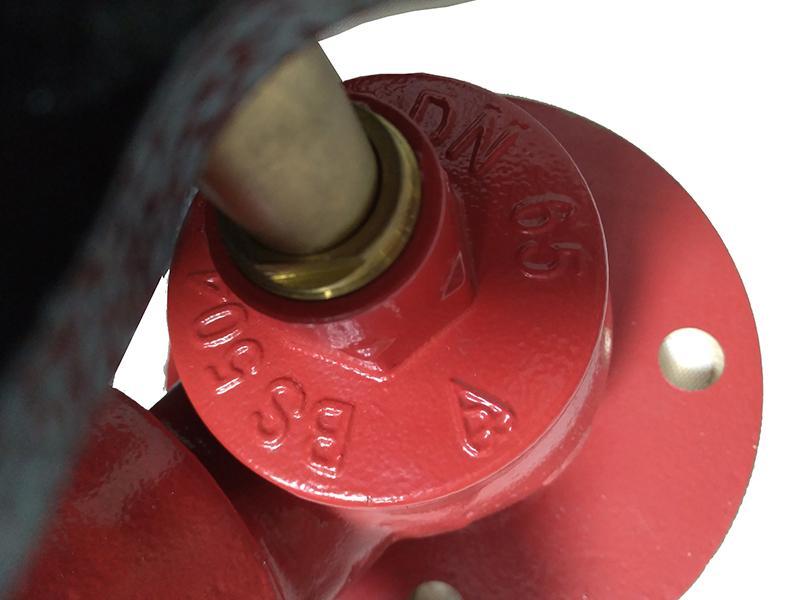

Body label
Bottom
Technical Specification

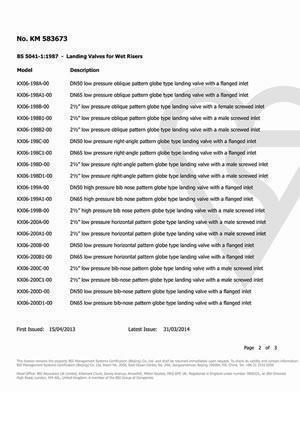

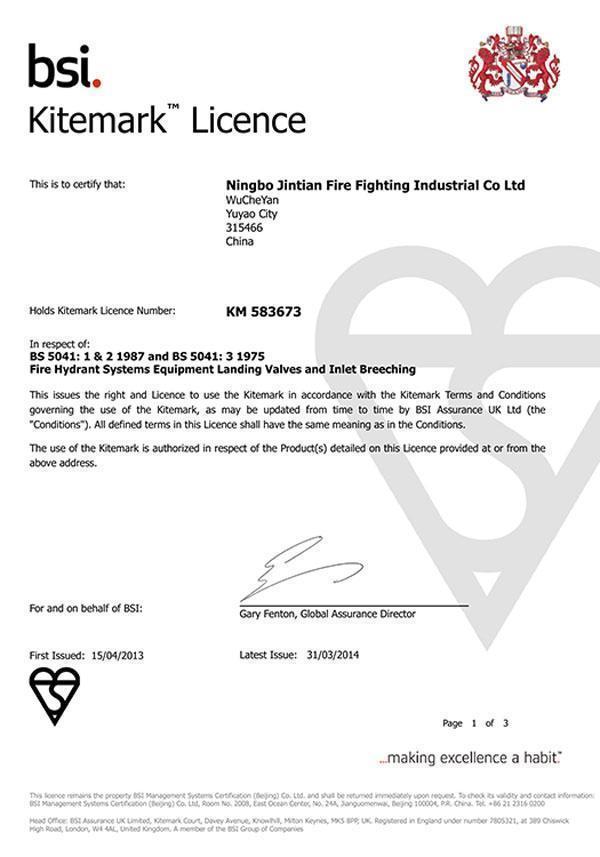

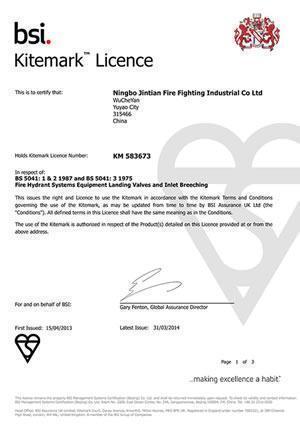

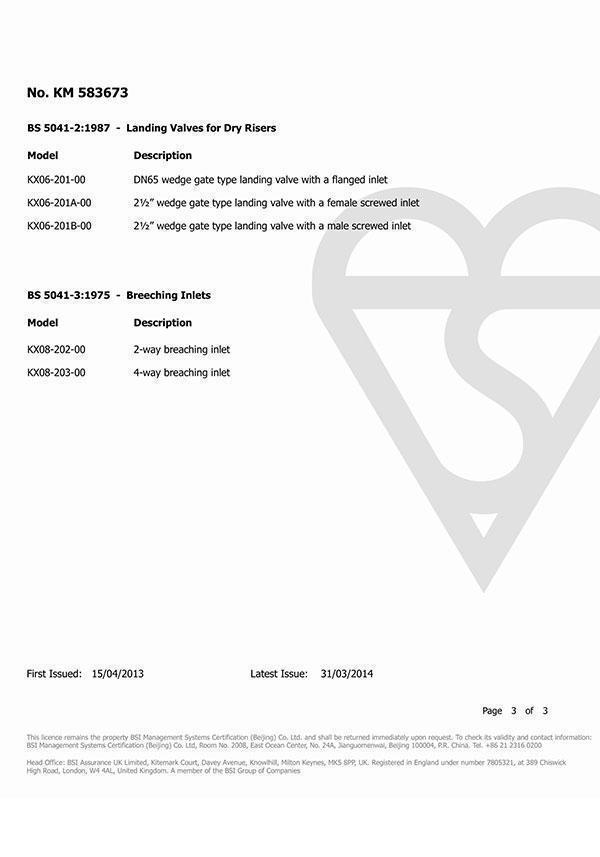

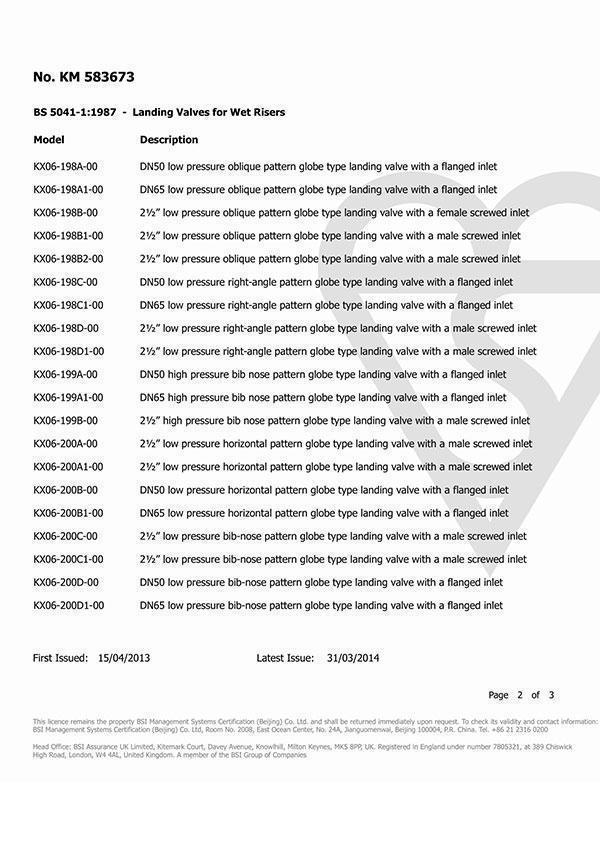

Standard: Certificate to BS 5041-1 Approve by BSI
Body: Copper alloy, Thickness ≥3mm
Hand wheel : Grey cast iron or Aluminum alloy
Black cap: Copper alloy or Plastic
Inlet: Flanged or BSP Screwed
Outlet: Female instantaneous to BS336
Surface: Red or yellow painting
Test pressure: 22.5 bar
Flow rates: More than 8.5L/S
Fully open: 4.5 turns
