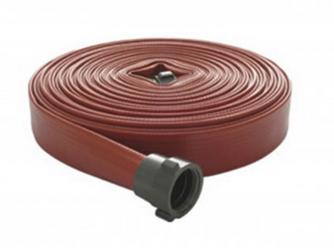

Double Jacket NBR Lined Fire Hose
◆ Light weight; construction tightness
◆ Corrosion resistance; ageing resistance
◆ Weather resistance; Mildew resistance
◆ UV resistance and long serving life
General Description
Polyester warp and filler. EPDM rubber lined. Available with service test pressure of 150PSI and 250PSI
Application
Fire-fighting; Shipping; petroleum; Chemical industry; Agriculture; Mining
Color
White; yellow; red; or as per customer's instruction
Standard Length
10M up to 40M
Couplings
Upon requested
| Working Pressure | Bursting Pressure | ||||||
| (inch/mm) | (Bar | Mpa | Psi) | (Bar | Mpa | Psi) | |
| 1-1/4" | 32 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-1/2" | 38 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-3/4" | 45 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2" | 52 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2-1/2" | 64 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2-3/4" | 70 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 3" | 75 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 4" | 102 | 8-16 | 0.8-1.6 | 120-235 | 24-48 | 2.4-4.8 | 350-700 |
| 5" | 127 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
| 6" | 152 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
