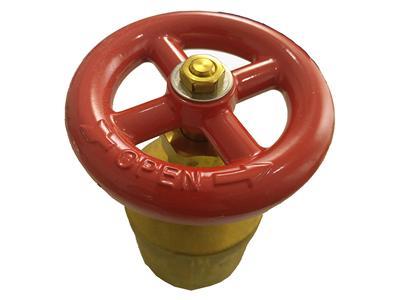

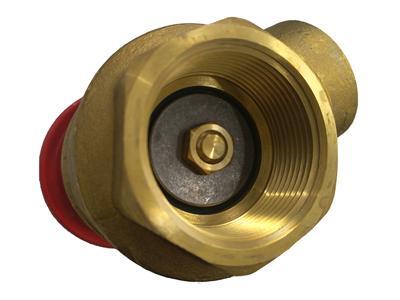

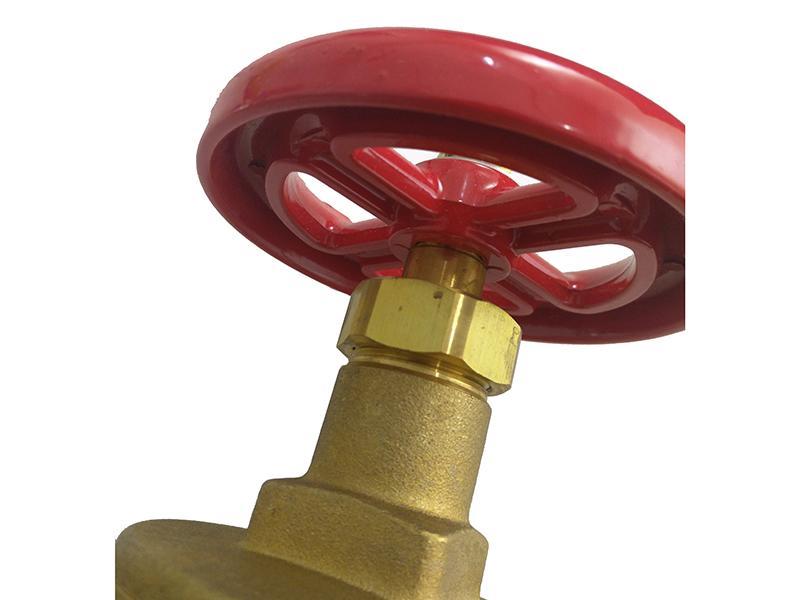

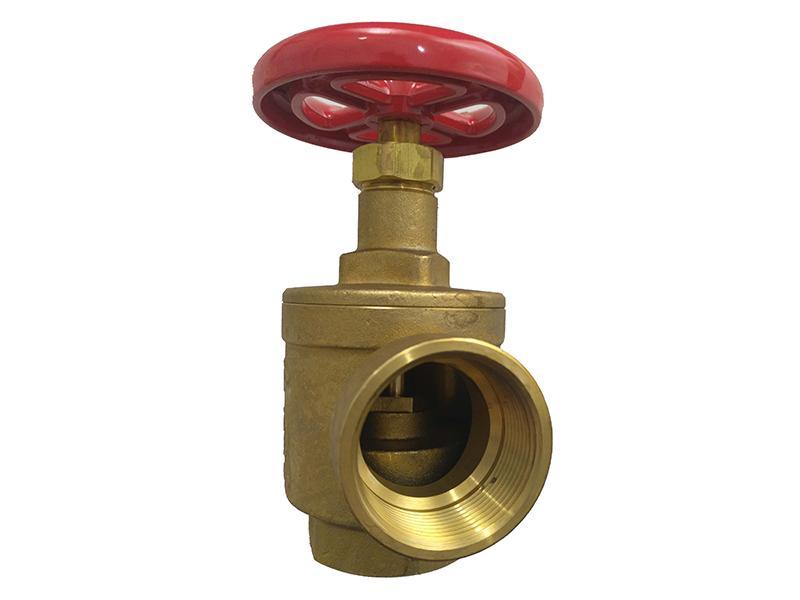

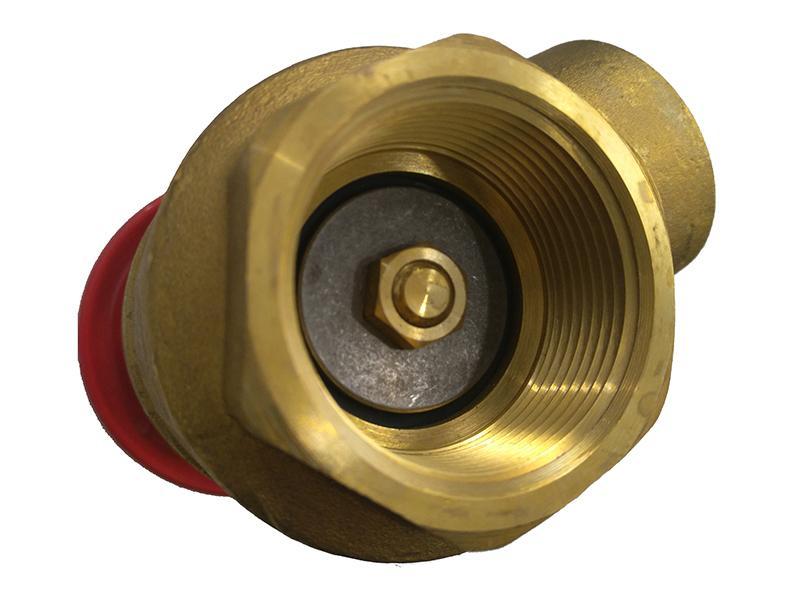

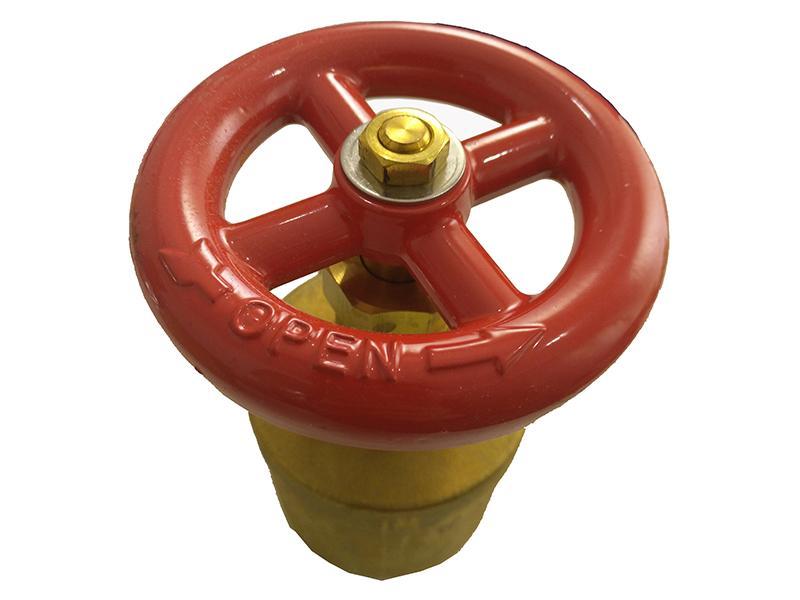

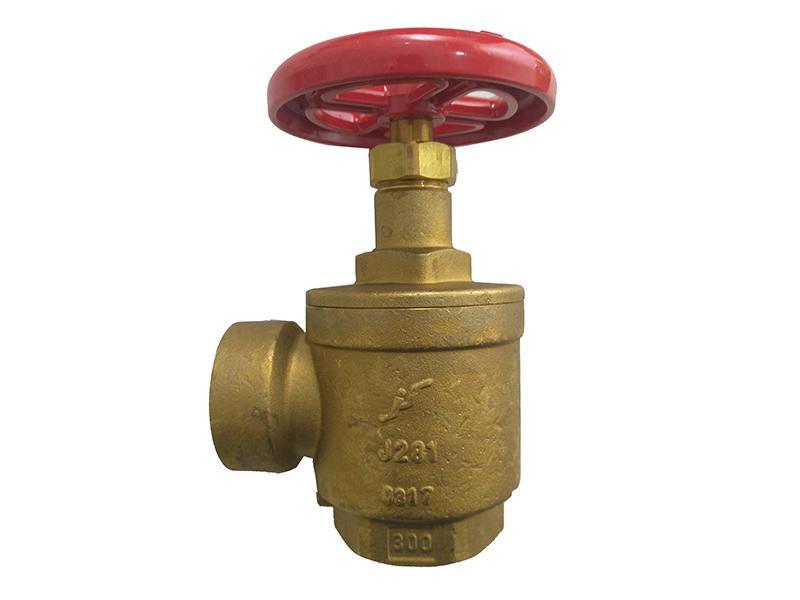

Angle Hose Valve

Waterflow Detector

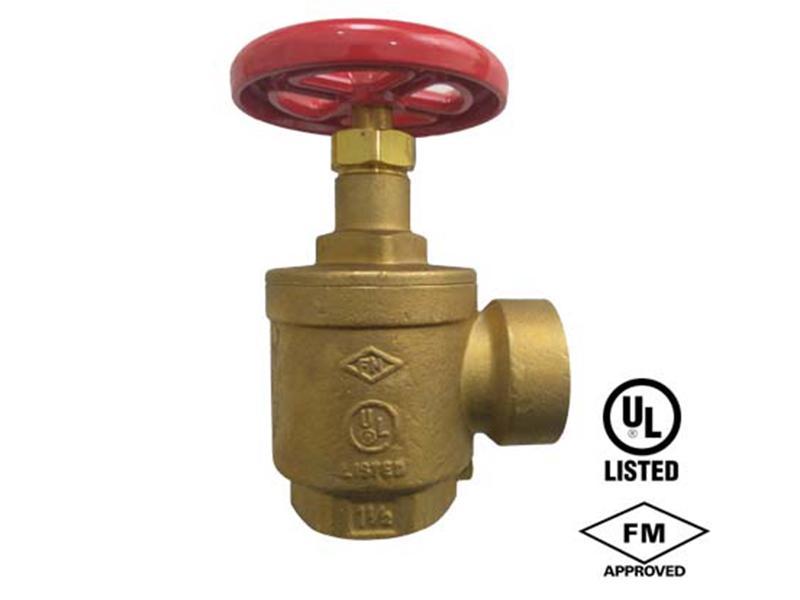

The UL FM Angle Hose Valve is manufactured according to NFPA 13 standards and they are suitable for fire protection service outlets or with a hose rack assembly.

Specification:
Standard: As per NFPA 13, UL668
Body: Cast brass
Hand wheel: Forging Brass
Pressure rating: 300 PSI
Angle Type: Female X Male / Double Female
Inlet: Female NPT Inlet
Outlet: Male hose thread / Female NPT outlet
Optional Plated: Polished brass / Rough chrome plated / Polished chrome plated
Size:1 1/2" and 2 1/2"

Valve Size Range
Size V B mm Closed C mm Open C mm D mm
1-1/2" 630 100 169 195 50
2-1/2" 790 125 225 268 68

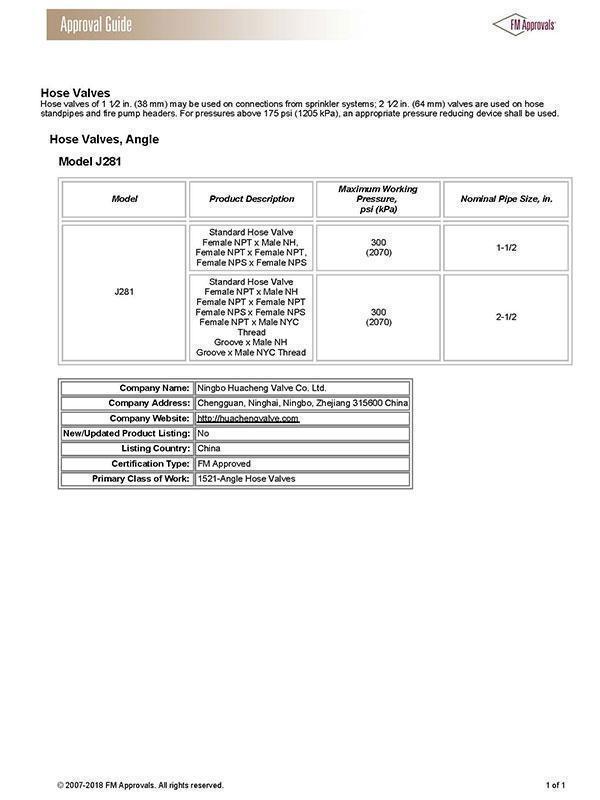

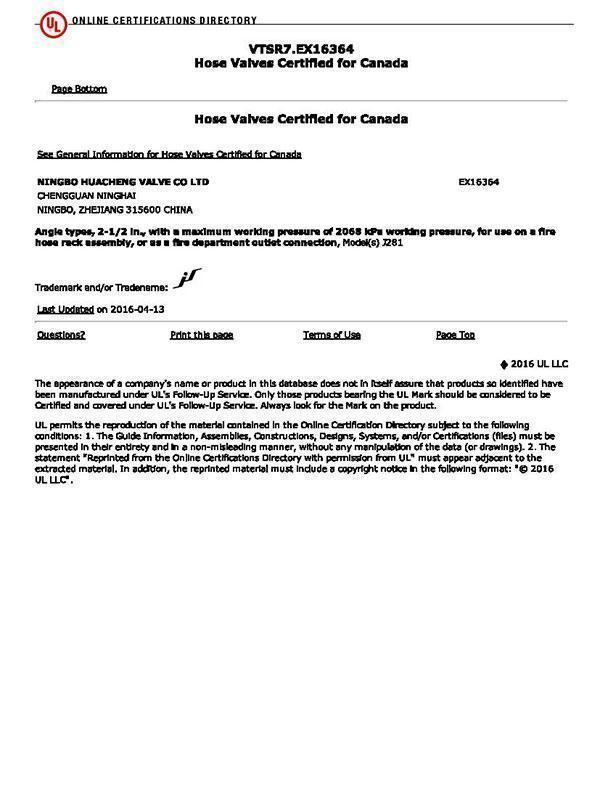

Certificate
  • Certificate
  • Certificate
