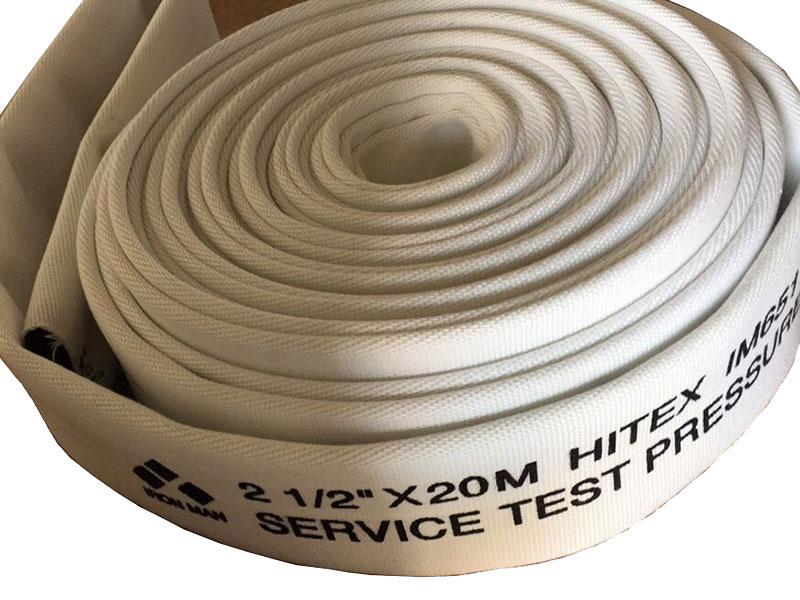

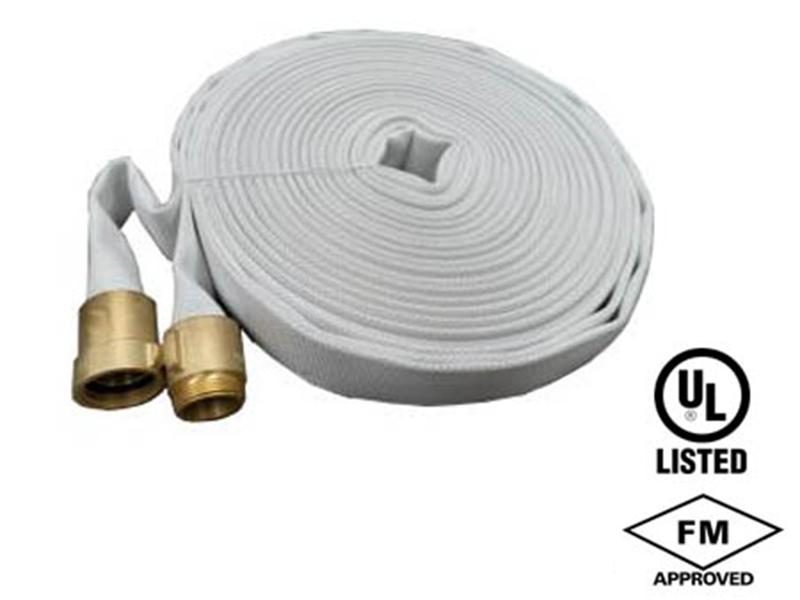

Single Jacket Fire Hose with EPDM Rubber Liner
Model: IM-FH-SJ(IM401) 1-1/2 inch
Synmex(IM501&IM651) 2 inch / 2-1/2 inch
Description
Single jacket fire hose can provide working pressure of 150PSI and 250PSI, its internal layer is made of EPDM rubber lining, and outer layer is made of polyester warp yarn and filler braid ply.
Application
Firefighting; shipping; petrochemical, agriculture, mining
Colour
White; yellow; red; or according to customers’ requirement
Standard length: 10m to 40m

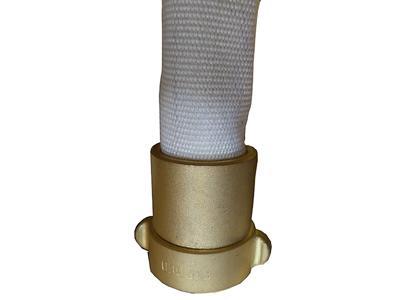

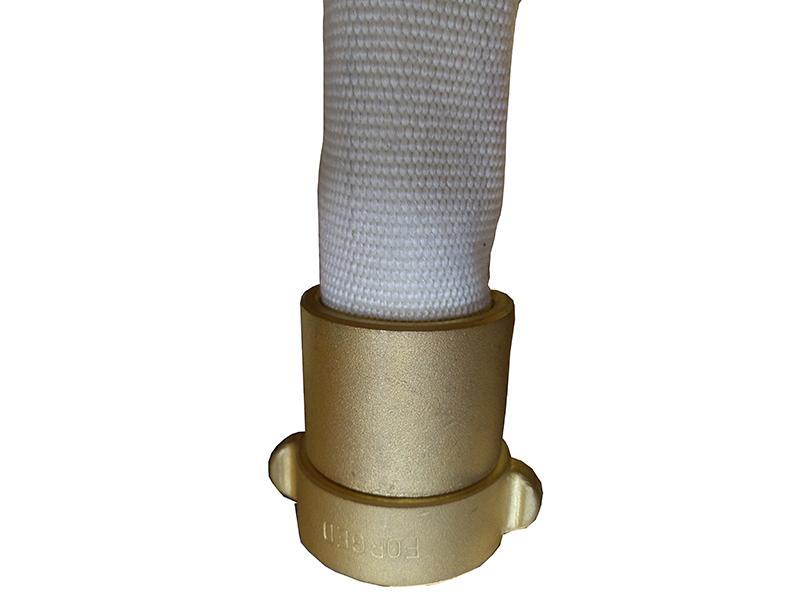

Hose reel coupling: as requirement
| Size (inch) | Hose type | Working Pressure | Bursting Pressure | Approval |
| 1-1/2 | Single Jacket | 250PSI | 750PSI | UL FM |
| 1-3/4 | Single Jacket | 250PSI | 750PSI | FM |
| 2 | Single Jacket | 250PSI | 750PSI | UL FM |
| 2-1/2 | Single Jacket | 250PSI | 750PSI | UL FM |
| 1-1/2 | Single Jacket | 150PSI | 450PSI | FM |
| 1-3/4 | Single Jacket | 150PSI | 450PSI | FM |
| 2 | Single Jacket | 150PSI | 450PSI | FM |
| 2-1/2 | Single Jacket | 150PSI | 450PSI | FM |
Feature
Light; compact structure
Corrosion resistance; anti-aging
Weather resistance; mold resistance
Anti-UV and long service life

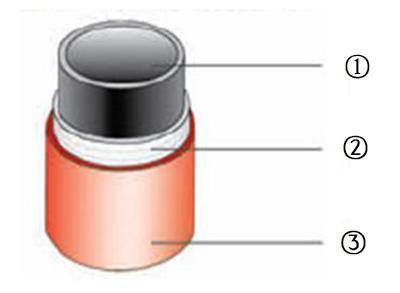

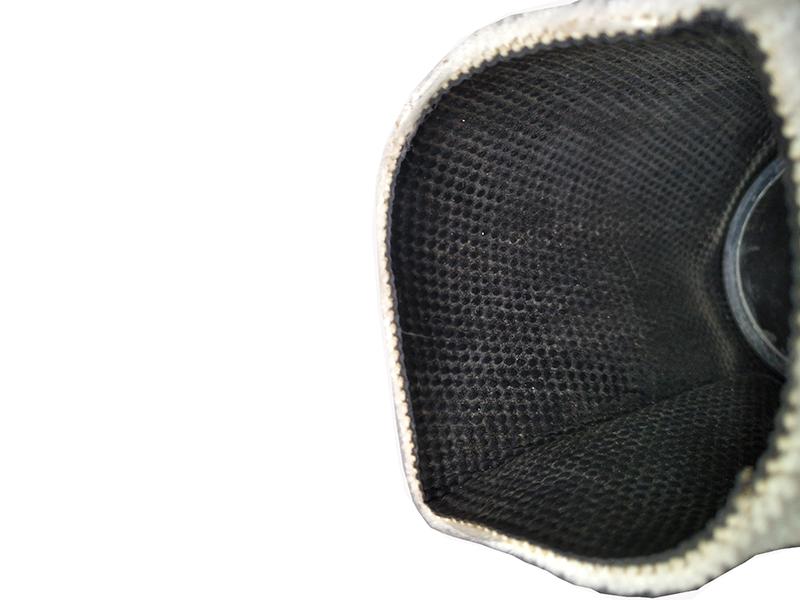

① EPDM rubber liner
② Hot melt/ rubber backing adhesive
③ Polyester jacket
Product readme

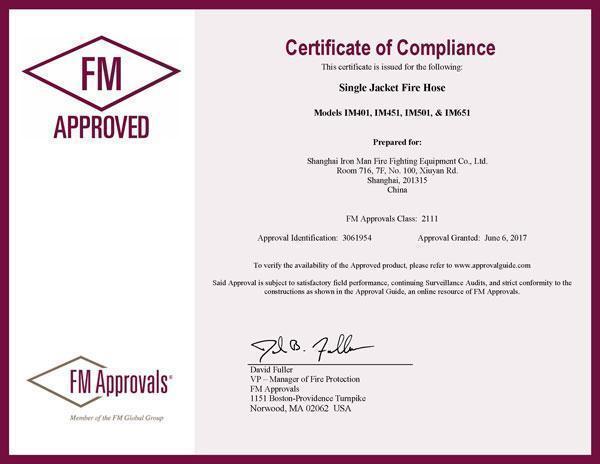

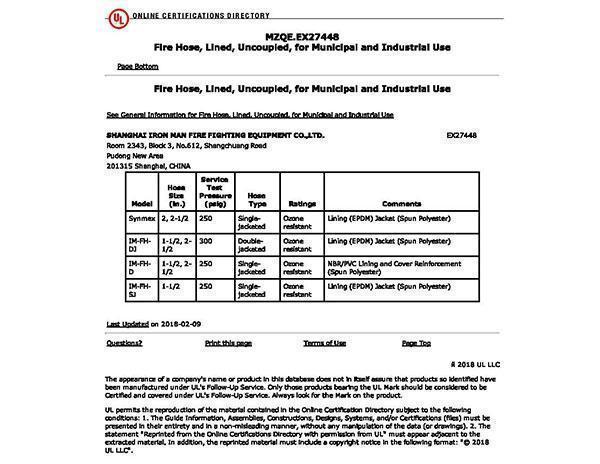

IRON MAN single jacket EPDM fire hose with liner passed UL and FM certification, which makes sure the excellent durability and performance of the products.
