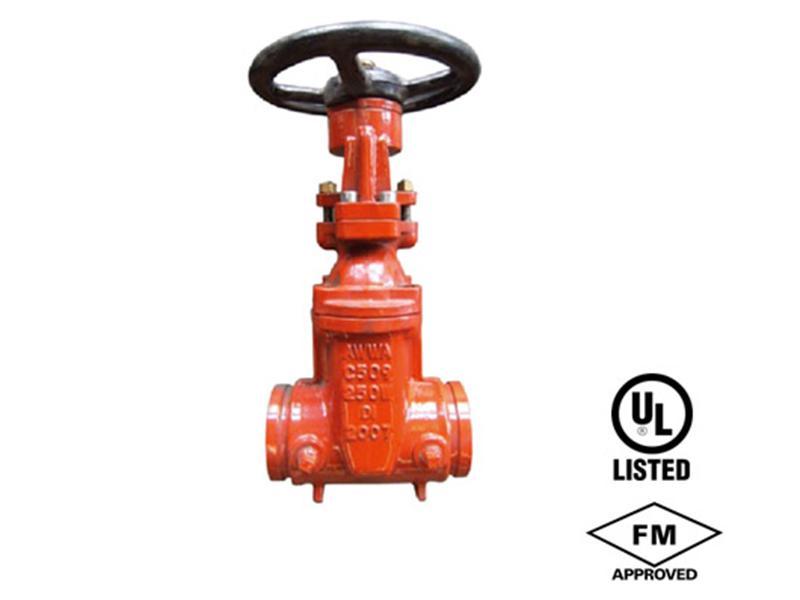

UL FM Grooved-End Gate Valve

UL FM Grooved-End Gate Valve

Bolted Bonnet. Outside Screw and Yoke. Resilient Wedge
300PSI/20.7 Bar Non-Shock Cold Working Pressure
Conforms to AWWA C509
FBE Coated Interior and Exterior
Maximum Operating Temperature 185℉/85℃
FM Approved & UL/ULC Listed

Part Specification
1.Valve Body Ductile Iron ASTM A 536
2.Resilient Wedge Ductile Iron ASTM A 536 with EPDM Encapsulation
3.Wedge Nut Bronze ASTM B 584 UNS C83600
4.Dowel Pin Stainless Steel ASTM A276 UNS S42000
5.Stem Back Seat O-ring EPDM
6.Bonnet Gasket EPDM
7.Bonnet Ductile Iron ASTM A 536
8.Stem Packing EPDM
9.Threaded Rod Carbon steel Zinc Plated
10.Gland Bushing Brass ASTM B 584
11.Gland Cast Iron ASTM A 126-B
12.Gland Nut Stainless Steel 18-8
13.Yoke Screw Alloy Steel ASTM A574M Zinc Plated
14.Yoke Cast Iron ASTM A126-B
15.Yoke Bushing Bronze ASTM B 584
16.Flat Point Set Screw Alloy Steel ASTM F 912M Black Oxide
17.Yoke Bushing Retainer Cast Iron ASTM A 126-B
18.Handwheel Ductile Iron ASTM A 536
19.Handwheel Nut Carbon steel Zinc Plated
20.Flat Head Screw Carbon steel Zinc Plated
21.Stem Bronze ASTM B 150 UNS C61400
22.Bonnet Screw Alloy Steel ASTM A 574M Zinc Plated
Dimension(mm)
Part Number Size(mm) L (mm) D (mm) G (mm) H Open (mm) H Close (mm) Turns To Open
Inch mm
135-065 2.5 65 190 64 200 453 378 8.8
135-080 3 80 203 76 254 510 405 10.5
135-100 4 100 229 102 254 568 422 13.75
135-150 6 150 267 152 315 769 581 16
135-200 8 200 292 203 375 960 724 17.5
135-250 10 250 330 254 416 1139 877 21.5
135-300 12 300 356 305 445 1326 1014 25.5
