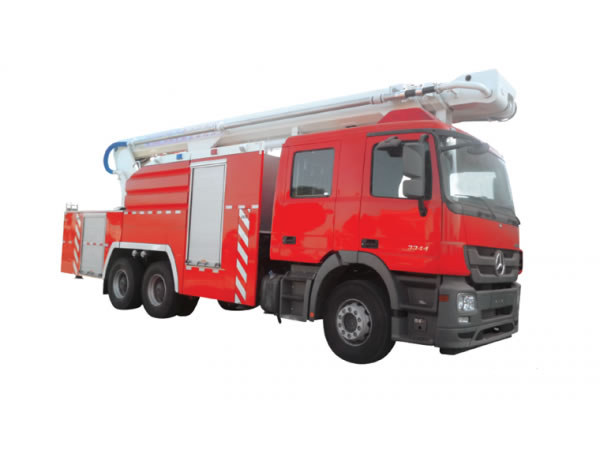

Water Tower Fire Truck
| Name | Water Tower Fire Truck | |
| Chassis Model | Benz Actros 3344 | |
| Max Speed(Km/h) | 104 | |
| Overall Size(mm) | 10335*2500*3885 | |
| Number of Seats | 6 | |
| Gross Weight(Kg) | 31000 | |
| Max Power(Kw) | 320 | |
| Main Performance | Rated Working Range(m) | 32 |
| Max Working Range(m) | 9 | |
| Luffing Scope | 0-80 | |
| Outrigger Span(mm) | 5800*4800 | |
| Weight Parameters | Axle Weight | 6590/24300 |
| Agent Rated Load | Water 5T / Foam 2T | |
| Working Speed | Arm Frame Movement Speed(s) | < 100 |
| Branch Leg Movement Speed(s) | < 40 | |
| Turning Speed(r/min) | < 2 | |
| Fire Pump | Flow Rate(L/s) | 70 |
| Pressure(Mpa) | 1.7 | |
| Fire Monitor | Flow Rate(L/s) | 70 |
| Water Throw Range(m) | 70 | |
| Foam Throw Range(m) | 60 | |
