Given the architectural structure and the installing efficiency, horizontal sidewall sprinkler is usually used to replace up-right spray sprinkler and pendent spray sprinkler. Because it is designed to install on the side of wall or beam, and below the smooth ceiling. These sprinklers are installed on the center line of horizon, they produce 1/4-sperical water spray mode and mainly lead downward and outward from the deflector.

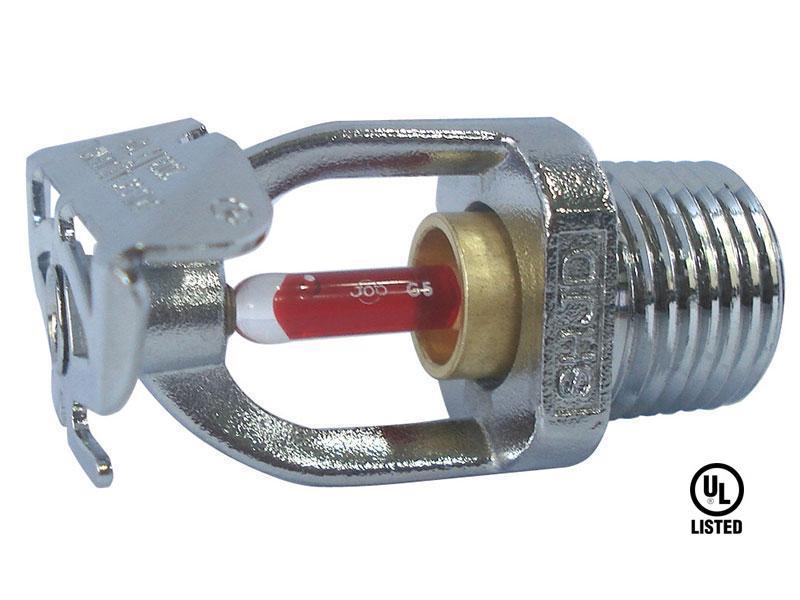

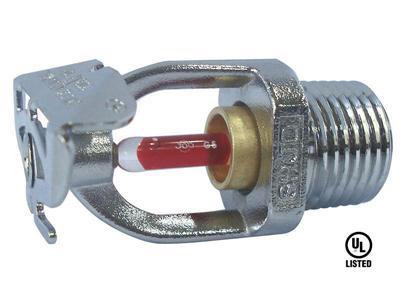

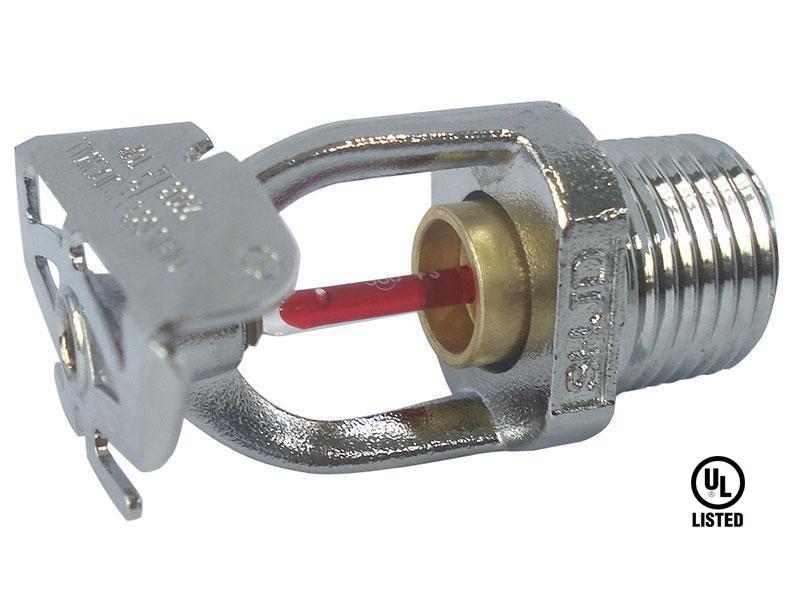

JD005/JD006 standard/quick response horizontal sidewall sprinkler is spherical glass automatic standard sprinklers. It has 1/2 mm orifice, and 5/3 mm ball joint. And it is standard/quick response-standard orifice sidewall sprinklers, and is used for fire fighting system meets the standard installation specification authorization.
In case of fire, the thermosensitive liquid in the glass bulb will quickly expand, which will result in the blasting of glass bulb and discharging the seal assemblies, such as stopper and springs. The water flowing through sprinkler orifice will lash against the sprinkler deflector, which will then form uniform sprinkling water flow to control or extinguish the fire.
|Response||Standard Response||Quick Response|
|Bulb Nominal Dia||Job 5mm||Job 3mm|
|Thread Size||NPT 1/2" or R 1/2"|
|Nominal Orifice Size||1/2 inch|
|Nominal K-factor||5.6(U.S)/80 (metric)|
|Factory Hydrostatic Test||100%@500psi|
|Sprinkler Finish||Brass / Chrome / White|
|Nominal Temp. Rating||155℉/68℃||175℉/79℃||200℉/93℃|
|Max. Ambient Temp. Allowed||135℉/57℃||155℉/68℃||180℉/82℃|
|Max. Recommended Ambient Temp.||100℉/38℃||150℉/65℃||150℉/65℃|
|Glass Bulb Color||Red||Yellow||Green|
