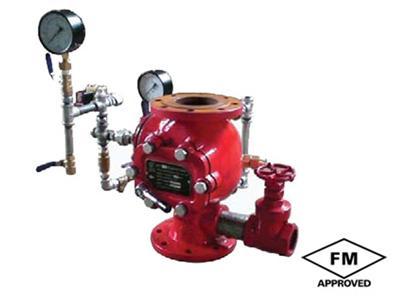

Lever Deluge Valve
Lever Deluge Alarm Valves are used as "automatic water control valves" in deluge, pre-action, and special types of fire protection systems such as foam water and double interlock. The Valves also provide for actuation of fire alarms upon system operation.
Features
Suit for water system, foam system, drencher system
Easy disassembly and maintenance
Size:100m,150mm
Epoxy painted internally & externally
Vertical installation
Nodular cast iron
Flange X Flange is available
Rating working pressure 1.6MPa
FM approval
| Size | 4"(DN100) | 6"(DN150) |
| Inlet Connection | Flange | Flange |
| Outlet Connection | Flange | Flange |
| Max.Working Pressure | 232psi/16bar | |
| Material(Body) | Ductile Iron | |
| Factory Hydro Test | 100%@464psi/32bar | |
| Standard Finish | Red painted | |
| Flange Specification | Flange:Class 150 ANSI B16.10 & ISO | |
| Required Accessories | Standard Trim | |
| Optional Accessories | Water Motor Alarm,Pressure Switch | |
| Installation Manner | Vertically | |

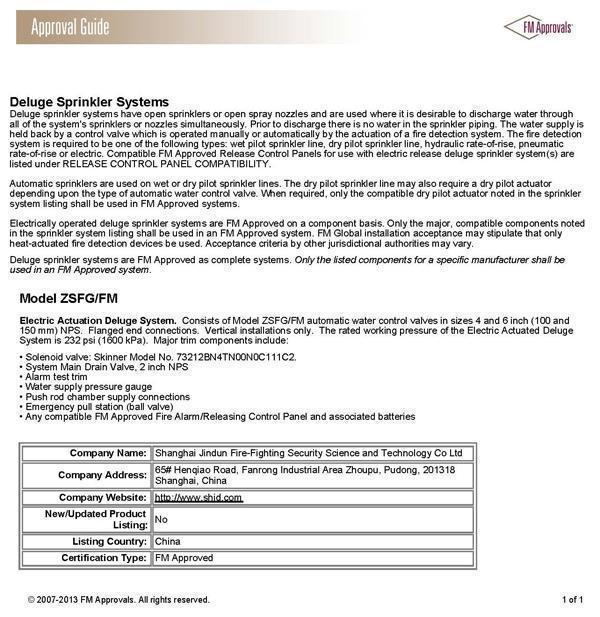

| Listings and Approvals | FM | |
 | Nominal Dimensions in Inches and (MM) | |||
| 4" (100 mm) Valve Size | 6" (150 mm) Valve Size | |||
| A | B | A | B | |
| ANSI B16.1 (CLASS 150) | 7.50 (190.5) | 0.75 (19.1) | 9.50 (241.3) | 0.88 (22.2) |
| ISO 2084 (PN16) | 7.09 (180.0) | 0.71 (18.0) | 9.45 (240.0) | 0.87 (22.0) |
