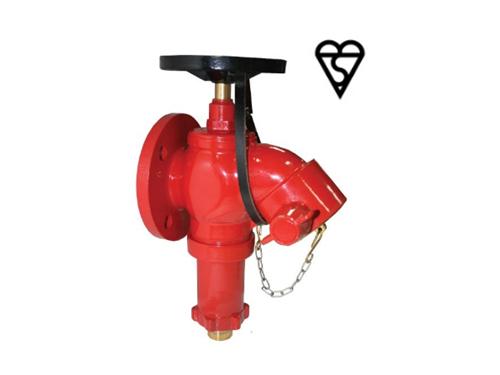

Pressure regulating valve is normally installed in the buildings.
The outlet pressure range is 5 bar-8 bar.
The rated inlet pressure suitable for this valve can reach 20 bar. The working temperature is between 0°C to 38°C.
Standard: Certificate to BS 5041-1 Approve by BSI
Body: Copper alloy, Thickness ≥3mm
Hand wheel: Grey cast iron or Aluminum alloy
Black cap: Copper alloy or Plastic .
Inlet: Flanged or BSP Screwed
Outlet: Female instantaneous to BS336
Surface: Red or yellow painting
Test pressure: 30 bar
Fully open: 4.5 turn
Inlet pressure 20bar,regulating outlet static pressure 5 – 8 bar
Inlet pressure 20bar,regulating outlet static pressure > 20 bar
|Size||H (mm)||W (mm)||Inlet||Outlet|
|DN65||380||260||2.5 ’’ BSPT||BS336|
|DN65||380||260||2.5 ’’ BSP||BS336|
